Top Features: FM and VdS approval, double connection nut passed through or fully welded, clamping ranges from 15 - 521 mm.

Advantages: FM and VdS approval. The FRSMN without sound insulation insert is ideally suited for industrial applications and plastic pipes. The connection nuts with combined threads ensure flexibility on the construction site. The double screw feature allows for optimized adjustment to the outer diameter of the pipe. The loss protection of the screws ensures hassle-free assembly.

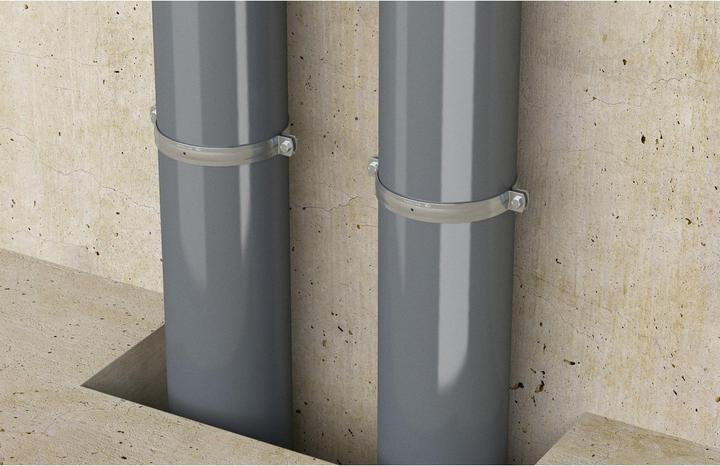

Applications: Mounting of metal or plastic piping without sound insulation requirements using threaded rods or stud bolts, e.g., in industrial buildings. Securing sprinkler piping according to FM and VdS guidelines guarantees objectively tested safety for the use of sprinkler systems. Suitable for use in dry indoor areas.

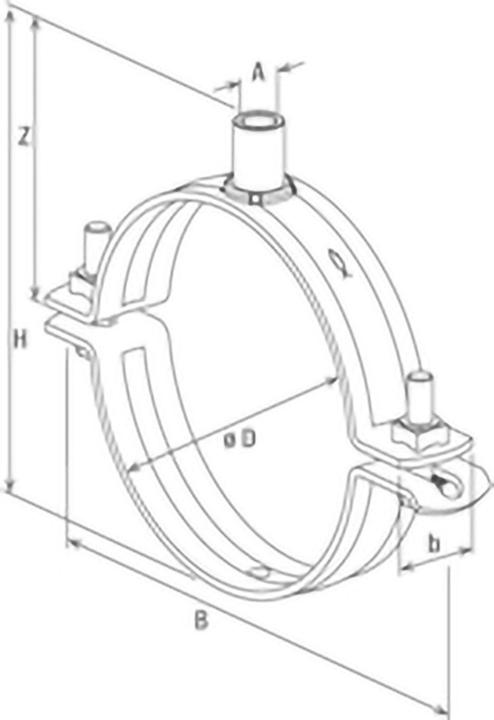

Features: Connection thread: M10 / M12, clamp band width: 30 mm, clamp band width x thickness: 30 x 3.0 mm, installation torque: 3 Nm, max. recommended static load (central tension): 5 kN, nominal size: 3", clamp band thickness: 3 mm, closure screw: M8, insulation insert: no insert, surface protection: galvanized/electrolytically zinc-coated, insert: none, load level: heavy.
