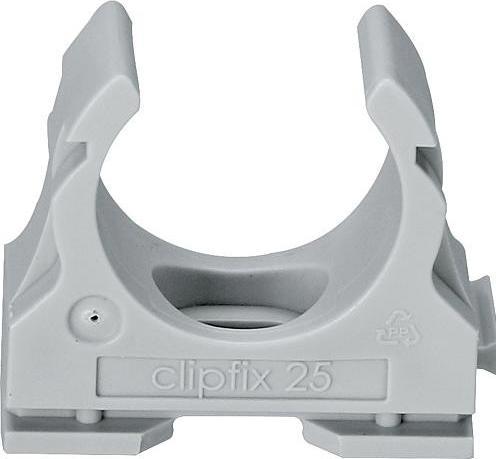

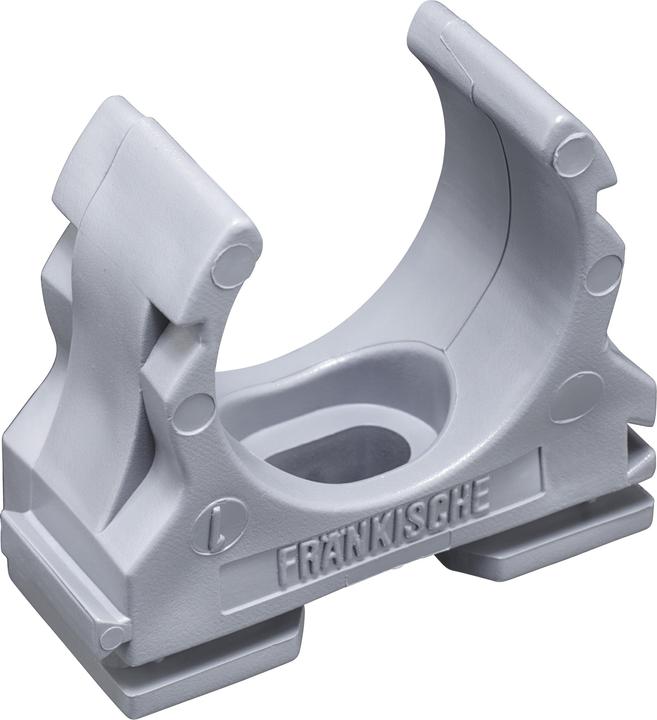

Fränkische Plastic Clamp Clipfix 25

Manufacturer: Fränkische
Description: Plastic clamp for all corrugated pipes
Type: Clipfix 25
Suitable for pipe diameter: 25 mm
Closed: no
Suitable for protective hoses: yes
Material: Plastic
Material quality: Polyethylene (PE)
Surface protection: other
Stackable: yes
Max. number of pipes: 1
Mounting type: screw hole
With insert: no
With wall seal: no
Color: gray
Operating temperature: -25 to 60 °C
Halogen-free: no
UV-resistant: no

Fränkische Plastic Clamp Clipfix 25: additional details
Clipfix is a plastic clamp made of polypropylene in gray (RAL 7035), non-flame spreading. This plastic clamp is used for the plastic rod pipes isofix-EL-F, FPKu-EM-F, FPKu-ES-F, and all corrugated pipes. For nominal diameters of 40, 50, and 63, clipsib securing brackets are included. The clamps can be mounted and stacked on a C-profile rail (10 mm). When mounting under extreme conditions such as vibrations, high temperatures, overhead installations, heavy weights, etc., the specified clamp distances must be significantly reduced or replaced with metal bracket clamps.
