FSB Push-in handle 15 1267 on mini rosette, door thickness 49-58 mm, satin stainless steel
Door handleProduct details
The installation of the new FSB push handle is straightforward: First, the door hole for the tension rosettes is prepared, suitable for a diameter of 27 mm. This can be done using CNC technology or manually with a hole saw. Additional key rosettes are aligned on the door using a template, the adapters are placed on the pin aligned in the lock cylinder, and securely fastened with screws. Finally, the cover rosettes are placed on, and the push handles can be mounted.
Note: exclusively suitable for installation on wooden doors. Installation requires a handle hole cutout with a diameter of 27 mm.

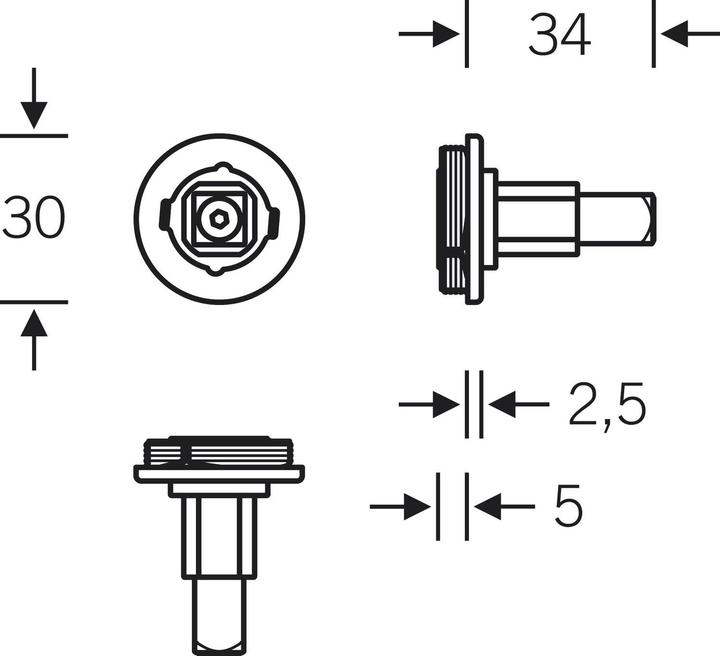

Rosette (mm): ø 30 x 2
Material: stainless steel
Mounting accessories: 2 countersunk screws M4 x 14 mm
Square pin (mm): 8 / 8.5 / 8 x 105 loose
Surface: matte
Door thickness (mm): 49 - 58
Class according to EN 1906: 4
Style direction: modern
Model: 15 1267
Brand: FSB
Fire protection certification: No
Contents (GT): 1.
Colour | Silver |
Item number | 42723089 |
Manufacturer | FSB |
Category | Door handles |
Release date | 5.2.2024 |
Colour | Silver |
Exact colour description | Matt |
Material group | Metal |
Material | Stainless steel |
Surface finish | Matt |
Application range | Indoor |
Type of set | Door handle |
Door thickness | 49 - 58 mm |
Items per sales unit | 1x |
Scope of delivery | 1 GT |
