Applications: For automatic flushing of urinals. For installation in Geberit Duofix elements without fixed crossbar, for urinal (from 2013).

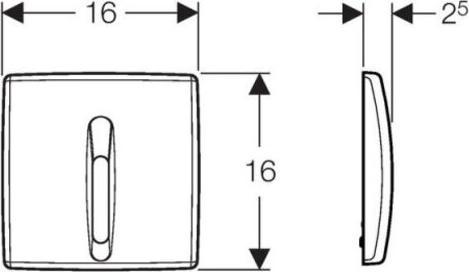

Scope of supply: Cover plate with IR window, mounting frame, infrared control, solenoid valve, power supply unit, fastening material.

Technical Data:

• Protection class: IP45
• Rated voltage: 110-240 V AC
• Mains frequency: 50-60 Hz
• Operating voltage: 4.5 V DC
• Power consumption: < 0.5 W
• Flow pressure: 100-800 kPa
• Maximum test pressure water: 1600 kPa
• Calculation flow rate: 0.3 l/s
• Storage temperature: -20 to +70 °C
• Minimum flow pressure for calculated flow rate: 100 kPa
• Interval flushing setting range: 1-168 h
• Dwell time adjustment range: 3-10 s
• Dwell time factory setting: 7 s
• Flush time setting range: 3-15 s
• Flush time factory setting: 7 s

Properties:

• Cover plate with safety latch
• IR sensor self-adjusting
• Dynamic scaling time adjustment
• Preset adjustable
• Convertible to operation with lid urinal
• Power supply via mains connection
• Ready for operation after mains connection
• Valve closing function in the event of power failure.
