Geberit Monolith WC sanitary module
Product details

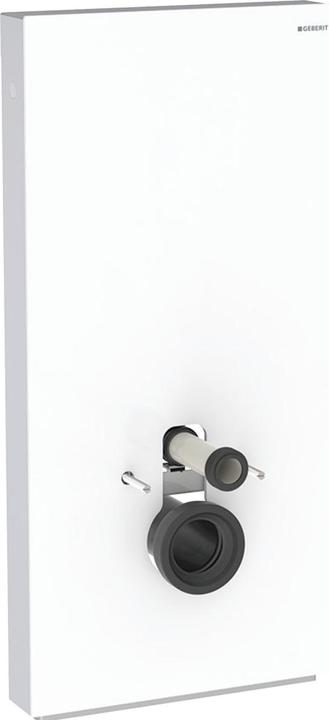

Geberit Monolith WC sanitary module for wall-hung WC, white glass and brushed aluminium, height 101 cm. This sanitary module features a side water connection and is suitable for renovations, conversions, and new builds. It is designed for wall connections with a drain height greater than 23 cm and can replace low-hanging wall-mounted cisterns as well as wall-hung WCs with surface-mounted cisterns. It is compatible with Geberit AquaClean complete WC systems and can connect to Geberit AquaClean WC top units with accessories. The module is intended for installation on finished floors and can be installed in front of drywall and solid walls. It also allows for leveling out misalignment between WC connections and wall drains through integrated connection pieces for wall-mounted WCs.
flush volume | 6 l |
Cistern type | WC mounting element |
Exact colour description | White |
Item number | 21555930 |
Manufacturer | Geberit |
Category | Toilet tanks |
Manufacturer no. | 131.022.SI.5 |
Release date | 25.7.2022 |
Colour | White |
Exact colour description | White |
Material group | Metal |
Material | Aluminium |
Cistern type | WC mounting element |
mounting style | Wall-mounted |
Water connection Inlet | Bottom right |
flush volume | 6 l |
Additional properties | Fully insulated |
flush pipe length | 160 mm |
flush pipe height | 1010 mm |
Flush pipe diameter to WC | 110 mm |
Flush pipe diameter to cistern | 50.80 mm |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 2 threaded rods M12, EPDM sleeve, Fixing material, Fixing material for drywall, ø 44 / 55 mm, ø 90 / 110 mm, ø 90 mm, PE-HD connection pipe, Plinth panel, Sink bow extension 160 mm, Sound insulation set, Transition sleeve made of PE-HD, Water connection set with angle valve R 1/2" |

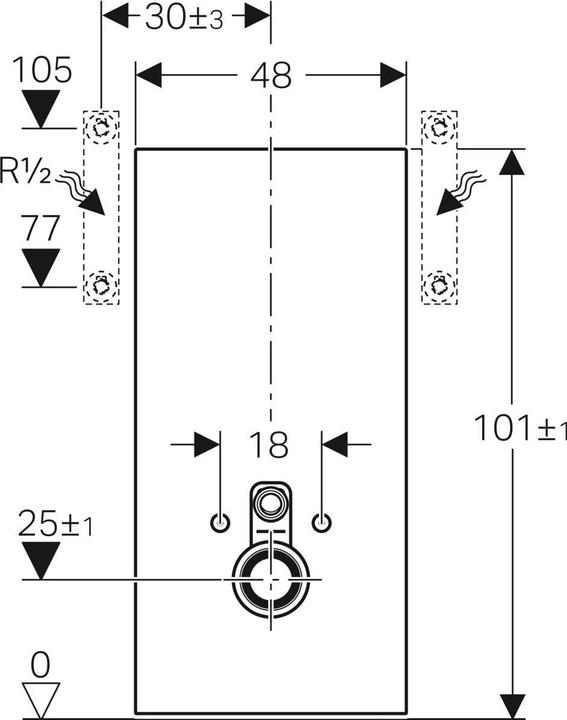

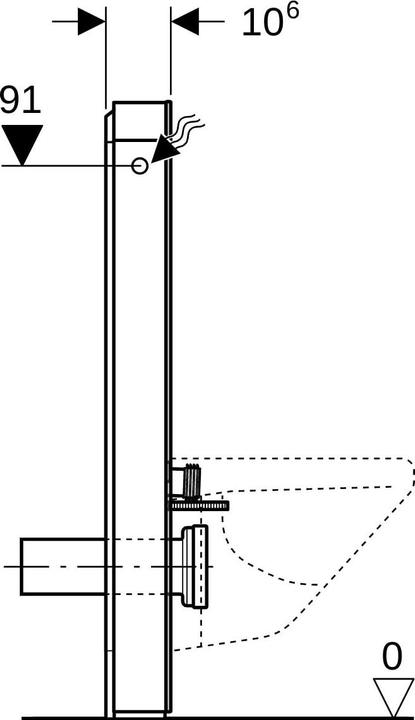

Depth | 106 mm |
Width | 480 mm |
Height | 1010 mm |
Length | 119.50 cm |
Width | 59.20 cm |
Height | 22.40 cm |
Weight | 27.52 kg |
