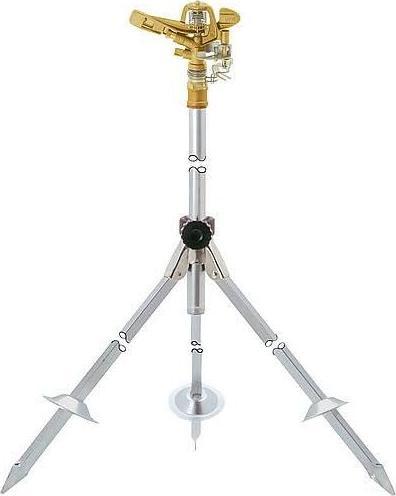

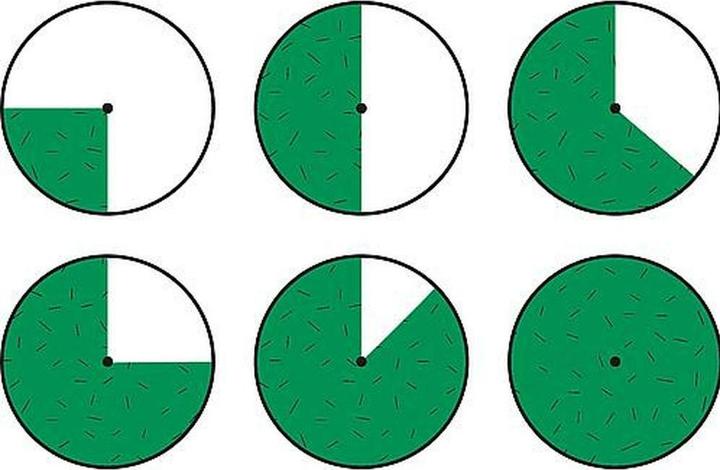

Oscillating lever sprinkler made of brass CW617N, with springs and jet interference stud in chrome steel. The jet interference stud regulates the throwing distance and drop size, while the sector limitation is infinitely adjustable from 20° to 360°. This sprinkler is suitable for medium to higher irrigation densities, with maximum throwing distances using standard nozzle equipment of approximately 16 m. Areas of application include open land, field vegetable growing, fruit growing, frost protection, and sports and leisure facilities. A prerequisite for use is 3/4" hoses and a minimum pressure of 2 bar.

Water flow rate:

• At 2 bar: 22.4 l/min
• At 3 bar: 27.4 l/min
• At 4 bar: 31.6 l/min

Blasting distance at 4 bar is approximately 16 m.
