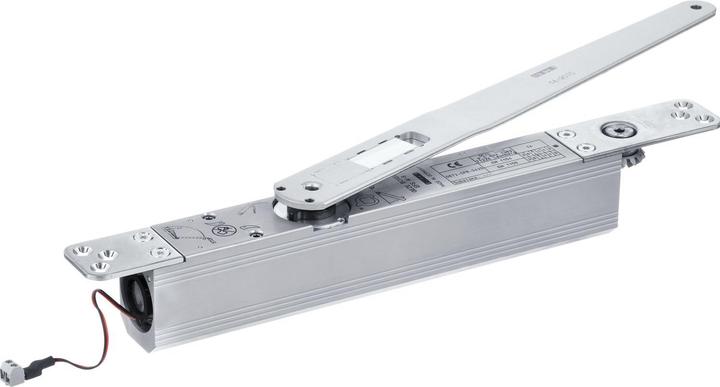

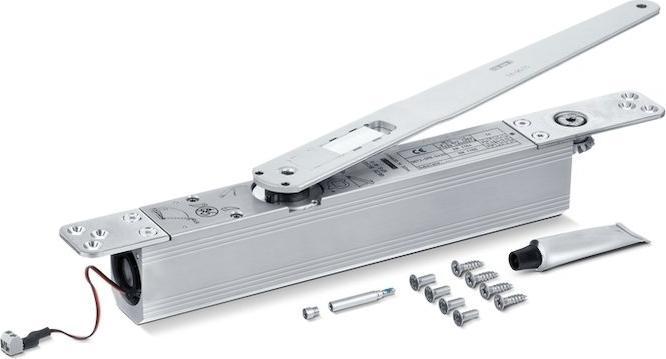

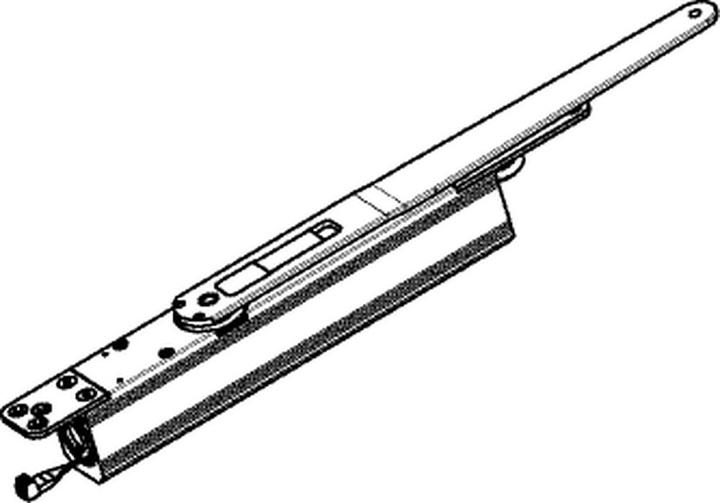

The integrated door closer Boxer EFS EN 4-6 allows for barrier-free access through single-leaf doors thanks to its free-swing function. The door closer is fully recessed into the door leaf and frame, making the sliding rail and lever invisible when the door is closed. The "Freeswing" free-swing function enables the door to be passed through with minimal effort in either the opening or closing direction, for example in senior facilities or hospitals, after the door has been opened once, such as in the morning. The door closer can be used for both right and left-hand doors without any adjustments. When installed, the closing speed, end stop, and mechanical opening damping can be adjusted in the sliding rail.

The Boxer EFS size EN 4-6 for single-leaf doors offers the perfect combination of the new integrated comfort locking function, which allows the door to be locked at the end of the free-swing area, and the proven GEZE "Freeswing" free-swing function. The locking mechanism prevents unwanted slamming of the door, for example, due to drafts. Fire protection is not compromised at any time; the door closes securely when triggered, even if it is in the locked position.

Technical specifications:

• Integrated door closer Boxer EFS without sliding rail for barrier-free access, adjustable closing force EN 4-6
• Comfort locking function and free-swing function for doors with a leaf thickness of 50 mm and above, according to EN 1154
• When the free-swing function is activated, the comfort locking function prevents unwanted slamming of the door
• Adjustable closing force, closing speed, and end stop when installed
• Power supply: 24V DC
• Protection class: IP 43
• Maximum door leaf weight: 180 kg
• Easy door processing due to compact installation dimensions
• Usable for right and left-hand doors up to 1400 without adjustments
• Wing widths starting from 600 mm possible
• Fully integrated into the door leaf, sliding rail only visible when the door is open.
