GH Beam shoe Kombi 04 external 140x139 - hot-dip galvanised steel

Joist hanger, 1 pcs.
Price in EUR including VAT
Ratings
BrandMore from GH
Delivered between Wed, 2.7. and Thu, 3.7.
Only 3 items in stock at third-party supplier
Supplied by
Free shipping starting at 30,–

Product details

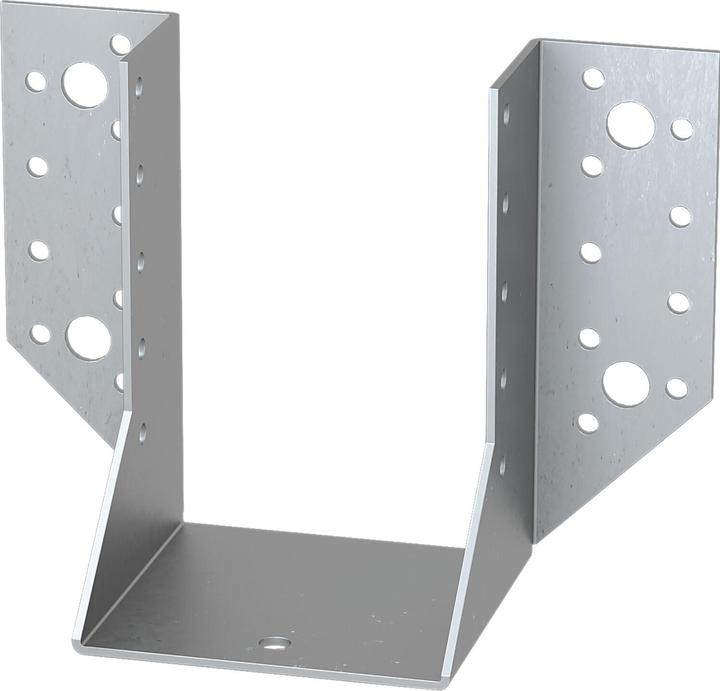

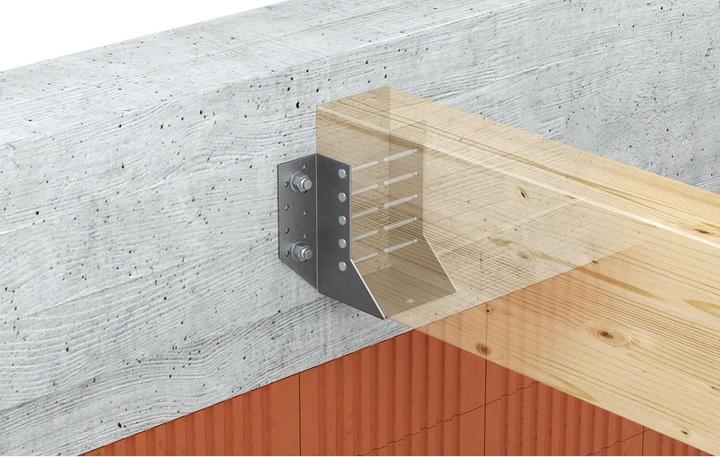

The classic Type 04 combination beam shoes are made from 2.0 mm thick, hot-dip galvanized steel sheet. The standard dimensions as well as custom dimensions are listed in the product selection. We are happy to manufacture custom dimensions according to your drawing. Beam shoes are used for connecting secondary beams to main beams or to supports. Our Type 04 combination beam shoes can also be attached to concrete as a combination with the existing 11 mm holes.

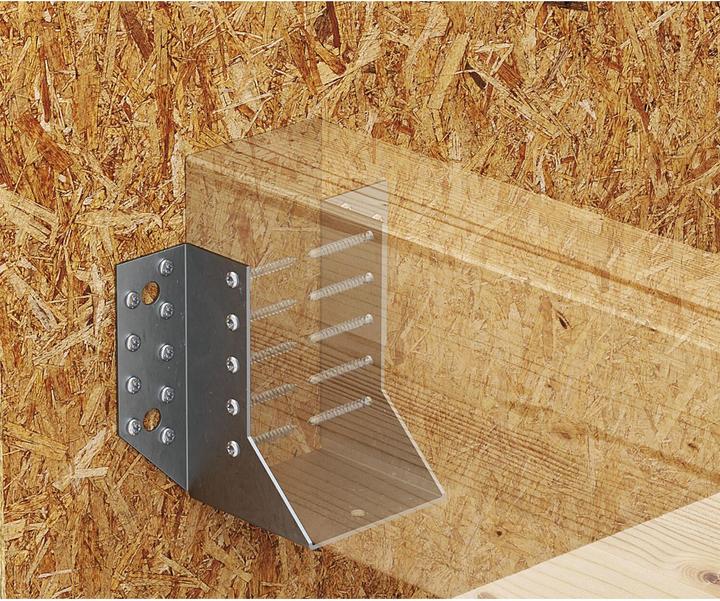

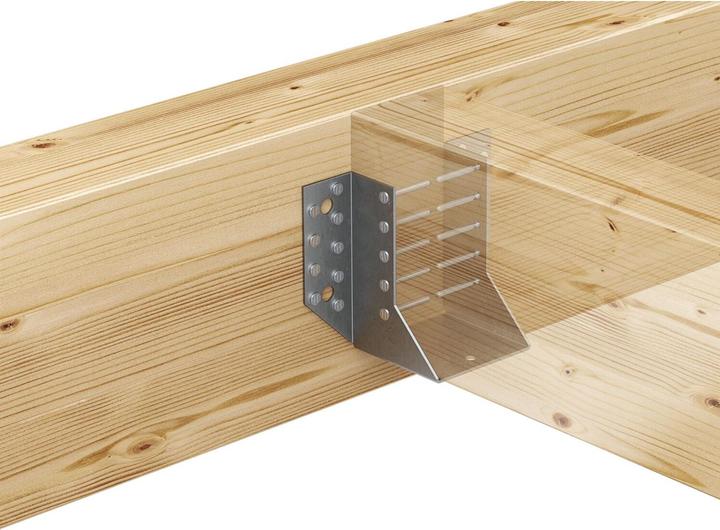

Application: Connection of wooden or wood-based secondary beams to main beams or supports made of wood, concrete, masonry, or steel.

Product advantages: The combination 04 beam shoes are approved for two-axis loading when fully nailed. They are also approved for partial nailing and connections of wood to concrete, masonry, and steel. Approved for wood/wood connections. With European Technical Assessment (ETA 08/0264).

Additional dimensions, intermediate sizes, or custom dimensions available on short notice!

Material: Steel
B (mm): 140
Surface: Hot-dip galvanized
Number of holes ø 11 (pcs): 4
H (mm): 139
Number of holes ø 5 (pcs): 3
Material thickness (mm): 2
Size (mm): 140 x 139
Brand: GH
Designation: Beam shoe
Type: Combination 04
Depth (mm): 80
Characteristic value full (kN): 33.1
Characteristic value partial (kN): 18.9
CNA comb nails (mm): 60
Contents (pcs): 1.

Key specifications

Area of use
Outside
Length
80 mm
Width
140 mm
Exact colour description
Hot dip galvanized
Material
Steel
Item number
42726074

General information

Manufacturer
GH
Category
Wood connectors
Release date
5.2.2024

Colour

Colour
Silver
Exact colour description
Hot dip galvanized

Material

Material group
Metal
Material
Steel

Wood connector properties

Connector type
Joist hanger
Surface finish
Hot dip galvanized
borehole size
139 mm
Area of use
Outside
Round head screws diameter
11 mm
Countersunk screws diameter
5 mm

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
80 mm
Width
140 mm
Height
139 mm
Thickness
2 mm
