GH Beam shoe TOP external 100x140 - hot-dip galvanised steel

Joist hanger, 1 pcs.
Price in EUR including VAT
Ratings
BrandMore from GH
Delivered between Mon, 21.7. and Tue, 22.7.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 30,–

Product details

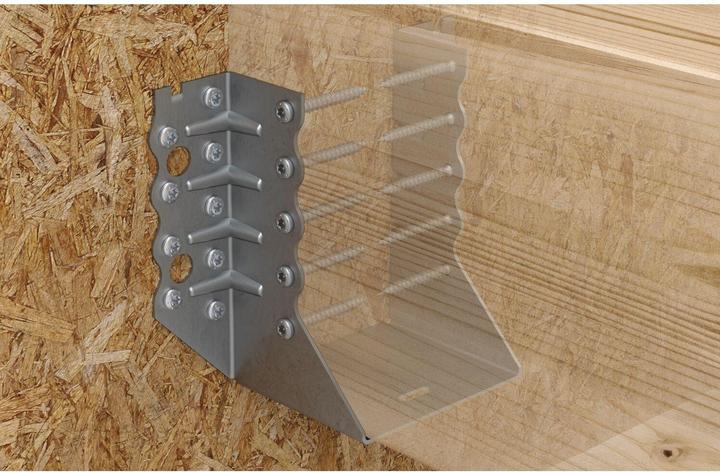

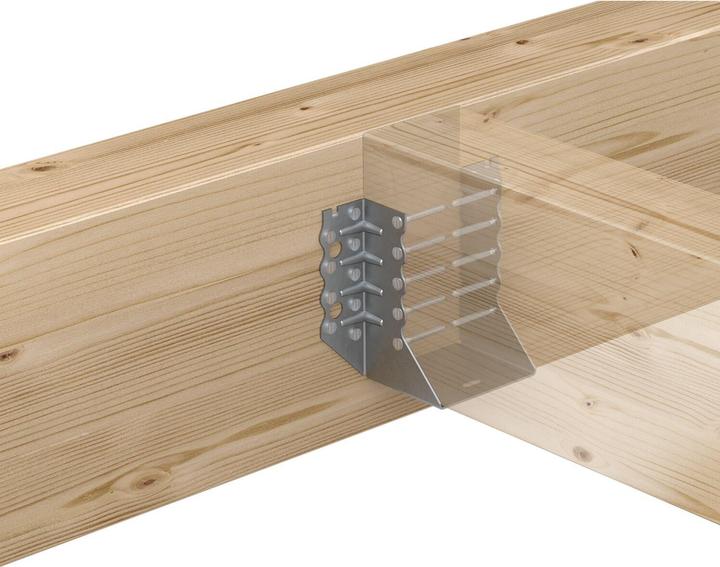

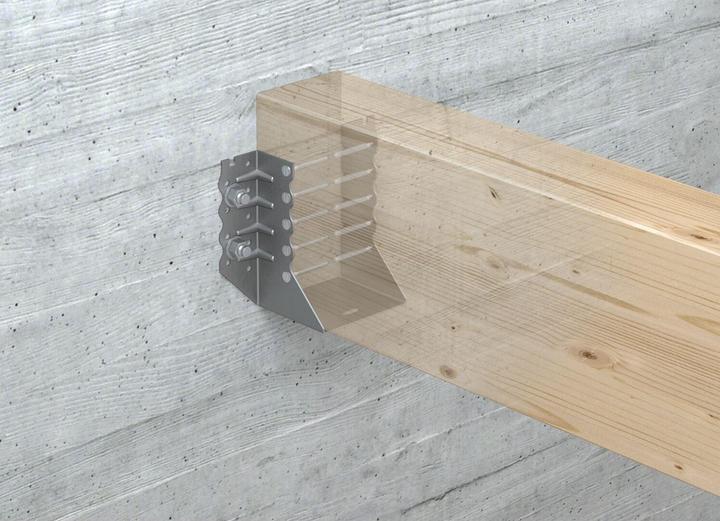

Application:Approved connection for installation on wood-based panels in the centre of the cavity, independent of structural timber between the timber studs.Other approved connections: Timber/timber, timber/OSB, timber/concrete, timber/masonry, timber/steel.Product benefits:With installation mandrel - the third hand during installation Time-saving and dimensionally accurate installation thanks to independent and secure hold -> reduces installation time.Easier installation, e.g. for overhead installation ring marking on the nail holes for quick and professional partial nailing (40 % fewer nails)the sikken give the joist hangers additional stability for the highest demands (also 2-axis load)approved partial nailing is quick and safe thanks to ring marking.Approved transverse installationWith European Technical Assessment (ETA 08/0264)Other dimensions, intermediate sizes or special dimensions available at short notice!Material: SteelSurface: Hot-dip galvanisedW(mm): 100H(mm): 140Material thickness(mm): 1.5Number of holes ø 5(ST): 34Number of holes ø 11(ST): 4Size(mm): 100x140Type: TOPBrand: GHDesignation: Beam shoeDepth(mm): 70Char. Value Part.(kN): 18,9CNA-Comb nails(mm): 60Char. Value full (kN): 33.1Content (ST): 1.

Key specifications

Area of use
Outside
Length
70 mm
Width
100 mm
Exact colour description
Hot dip galvanized
Material
Steel
Item number
42719653

General information

Manufacturer
GH
Category
Wood connectors
Release date
5.2.2024

Colour

Colour
Silver
Exact colour description
Hot dip galvanized

Material

Material group
Metal
Material
Steel

Wood connector properties

Connector type
Joist hanger
Surface finish
Hot dip galvanized
Area of use
Outside

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
70 mm
Width
100 mm
Height
140 mm
Thickness
1.50 mm

14-day cancellation right
30-day right of return
24 Months statutory warranty
