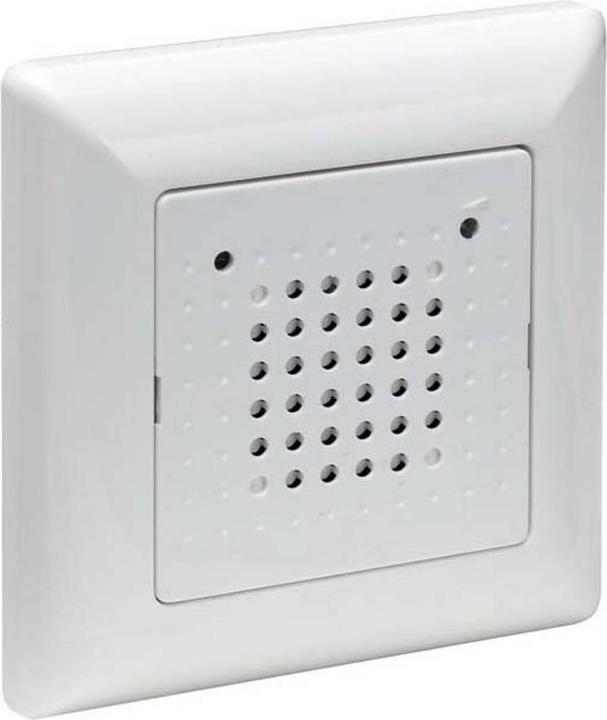

The simple design of the flush-mounted series Gong, bell chimes, and buzzers blends unobtrusively into numerous products from renowned switch manufacturers. Easily and flexibly integrate it on-site.

Product features:

• Flush-mounted electronic gong
• 17 polyphonic ringtones
• Integration into switch programs possible

Functions:

• 2-fold call distinction
• Mute function from the front
• Continuous volume adjustment
• Includes mounting plate and frame

Technical data:

• Volume of gong up to 83 dB(A)@1m
• Volume of LTW/buzzer up to 80 dB(A)@1m
• 8-12V =/~ / 0.280 A
• Dimensions: Gong: 50 x 50 x 43 mm, Frame: 80 x 80 x 11 mm
• Color: white

Installation note:
Installation in flush-mounted box

Notes:
Recommendation: Use switch junction boxes (depth 60 mm). The use of the flush-mounted gong or flush-mounted LTW/buzzer has been tested with the following surface programs from switch manufacturers:

• Berker: Module 2
• Merten: AtelierM, 1-M
• Jung: CD500, LS990
• Siemens: Delta Line
• GIRA: E2, Standard

The frames of the switch manufacturers may need to be adjusted.
