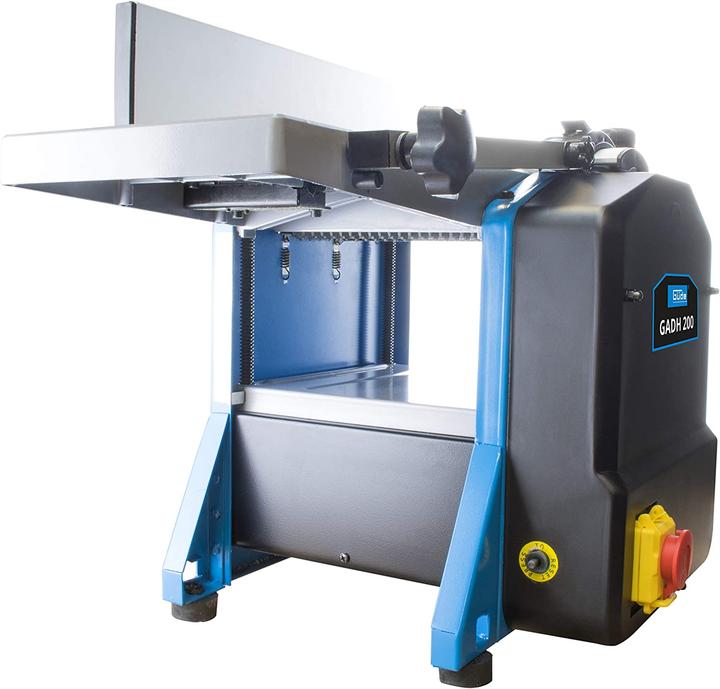

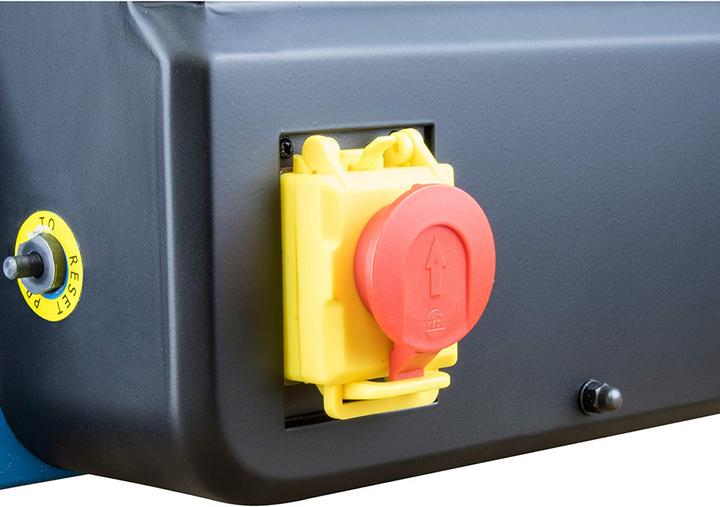

Planing tables made of aluminum die-cast (precisely machined and finely milled). The parallel stop is infinitely adjustable from 0° to 45°. The thickness table adjustment is made via a handwheel from 6 mm to 120 mm. There is a connection for a chip extraction system as well as tools for knife changes. The planer shaft guard and a safety switch with a zero-voltage release are also included. An overload switch and a push stick are part of the delivery. The machine stands on four angle steel feet and features a knife shaft with two HSS planer knives.

Optional accessories: Planer knife "pair" for GADH 200.

Technical data:

• Mains voltage: 230 V
• Frequency: 50 Hz
• Motor power (P1): 1250 W
• Planer shaft speed: 8000 min⁻¹
• Number of knives: 2 pieces
• Knife material: HSS
• Max. planing width: 204 mm
• Max. planing thickness: 6-120 mm
• Max. chip removal for planing: 0-2 mm
• Max. chip removal for thicknessing: 0-2 mm
• Size of planing table: 737 x 210 mm
• Size of thicknessing table: 255 x 204 mm
• Diameter of the extraction nozzle: 63 mm
• Max. stop angle: 45°
• Length: 780 mm
• Width: 445 mm
• Height: 460 mm
• Net weight: 23.4 kg
• Gross weight: 26.8 kg
• GTIN: 4015671801173
• Article number: 55440.
