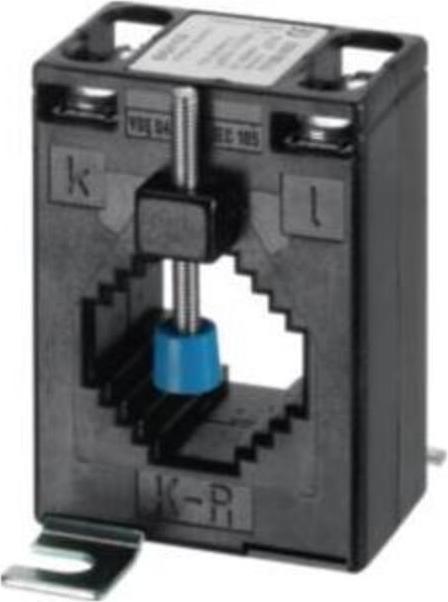

Hager transformer SRA02005
Manufacturer: Hager
Designation: Transformer 200/5, 2.5 VA, Class 1
Type: SRA02005
Design: Clip-on current transformer
Primary rated current In: 200 A
Secondary rated current: 5 A
Secondary rated apparent power: 2.5 VA
Accuracy class: 1
Overcurrent limiting factor: FS 5
Calibrated: No
With contact hazard protection: Yes
Height of opening: 20 mm
Opening width: 29.5 mm
Opening diameter: 29.5 mm
Snap-on mounting: No
With copper bar: No
Secondary connection: Screw connection
Number of primary inputs: 1
Hager transformer SRA02005: More details
Plug-through current transformer for busbar/cable BG 113 200/5 A 2.5 VA Class 1. Current transformer for busbar systems with impact-resistant plastic housing.
Power output | 2.50 W |
Voltage transformer type | Vehicle voltage transformer |
Length | 3 cm |
Width | 4.95 cm |
Height | 7 cm |
Item number | 17908799 |
Manufacturer | Hager |
Category | Power inverters |
Manufacturer no. | SRA02005 |
Release date | 13.12.2021 |
Voltage transformer type | Vehicle voltage transformer |
Power output | 2.50 W |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 3 cm |
Width | 4.95 cm |
Height | 7 cm |
