Hager Feldverteiler
Earliest delivery on Fri, 4.12.7 items ordered
In Detail

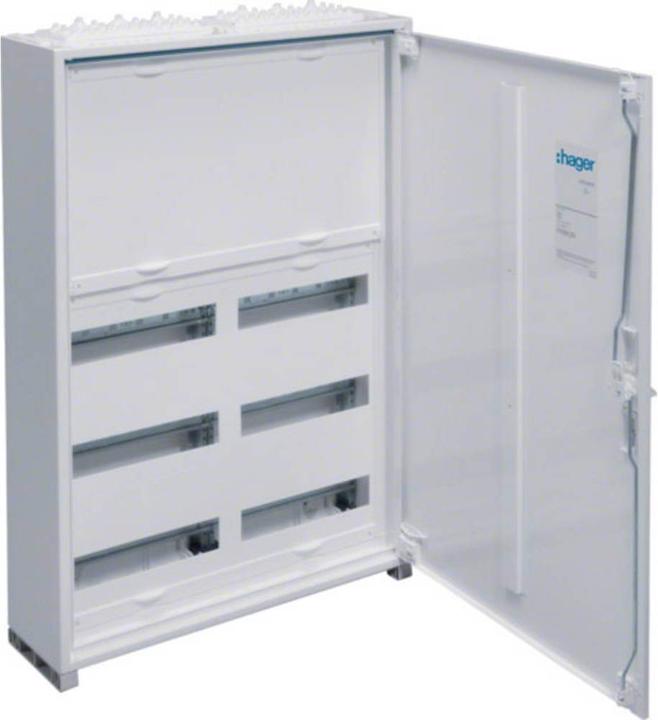

Surface-mounted panel distributor certified according to DIN EN 61 439-1/-3, dimension standard according to DIN 43 870. Designed for the installation of devices up to 125 A, with distances and creepage distances according to VDE 0110/1-2. The enclosure has a door made of powder-coated and baked sheet steel. From an enclosure width of 800 mm (3 bays), it has a double door design. Right-hand doors can be a maximum of 2 bays wide. The complete panelling includes an installation kit equipped with profiled mounting rails: the top two rows have 15 mm high top-hat rails for modular terminals with 150 mm spacing and a closed cover, while the bottom rows have 7.5 mm high top-hat rails with 150 mm spacing and matching contact hazard protection covers. Cable glands are located at the top and bottom, with removable flexible plastic flange plates, which are also replaceable. The door has internally adjustable hinges with an opening angle of 110°. Doors can be hinged on the right or left and have a door hinge that can be replaced without tools. The standard door lock includes a three-point bolt lock and a lockable folding handle.
