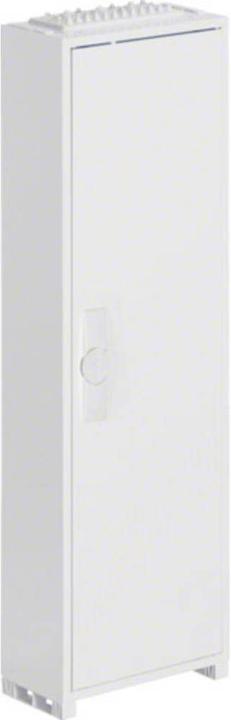

Hager Field distributor
Only 1 item in stock
Product details
Panel distributor AP certified to DIN EN 61 439-1/-3, dimensional standard to DIN 43 870. For installation of devices up to 125 A, air and creepage distances to VDE 0110/1-2. Consists of a cabinet with a door made of powder-coated and baked sheet steel. From cabinet width 800 mm (3 bays), two-door construction. Right doors maximum 2 bays wide. Complete cabinet with installation kit equipped with profiled mounting rails, 7.5 mm high top-hat rails with 125 mm center-to-center spacing and matching contact hazard protection covers, including PE/N QuickConnect terminals mounted on support. Cable entries top/bottom by removable flexible plastic flange plates, additionally exchangeable. Door with internal adjustable hinges and an opening angle of 110°. Doors can be hinged on the right and left, tool-free exchangeable door hinge. Door lock as standard with three-point rod lock and sealable folding handle. Interchangeable lockable locking systems and doors, see accessories.
Distribution cabinet technology Type | Field distributor |
Protection type (IP code) | IP44 |
Length | 161 mm |
Width | 300 mm |
Height | 950 mm |
Item number | 13049473 |
Manufacturer | Hager |
Category | Wiring closet technology |
Manufacturer no. | FWB61S |
Release date | 7.4.2020 |
External links |
Colour | White |
Exact colour description | White |
Material group | Metal |
Material | Steel |
Distribution cabinet technology Type | Field distributor |
Area of use | Inside |
Nominal current | 125 A |
Protection type (IP code) | IP44 |
Divisions | 12 x |
Configuration effort | Manual configuration |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 pcs. |
Length | 161 mm |
Width | 300 mm |
Height | 950 mm |
Depth | 165 mm |
Length | 102 cm |
Width | 33 cm |
Height | 18 cm |
Weight | 12.73 kg |
