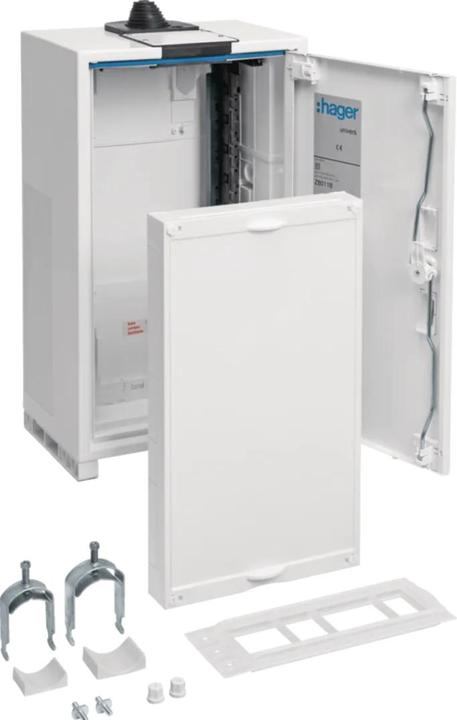

Hager Connection Cabinet, univers ZB011B

Manufacturer: Hager
Description: Connection Cabinet, univers
Dimensions: 500 x 300 x 205 mm
Protection Class: IP44
Type: ZB011B
Mounting beside cabinet: yes
Mounting above cabinet: yes
Mounting below cabinet: no
Number of poles: 5
Max. cross-section of supply cable: 120 mm²
Connection type: Busbar
Height: 500 mm
Width: 300 mm
Depth: 205 mm

Additional details:
Connection cabinet, univers Z, 500 x 300 x 205 mm, IP44, side-mounted for busbars 40 mm. Cabinet housing according to DIN VDE 0603/1, dimensional standard DIN 43 870 for surface-mounted, flush-mounted, or partially recessed installation. For the construction of a meter distribution system up to 355 A, rated voltage 230/400 V 50 Hz. Protection class IP31 (IP44/IP54 according to DIN VDE 0470/1), protection class II, insulated, protection class IP3X behind the door.

Consists of a cabinet with a door made of powder-coated, baked, stable profiled 1 mm thick steel sheet. Interior lining completely made of plastic. Cable entries at the top and bottom through built-in plastic flange plates, rear pre-forming in the plastic part, and busbar passages as double-sided lateral pre-forming in the lower area.

Door flush with the front with internal adjustable hinges, optionally hinged on the right or left with a 110° opening angle. Door lock with pre-lock, from a width of 800 mm and for all cabinets from a height of 1250 mm with three-point locking. Door lock interchangeable with other locks. Cabinets can be mounted side by side and on top of each other. Cabinet size 1 to 5 fields with 72 to 540 space units (PLE).

EAN: 3250617621830.
