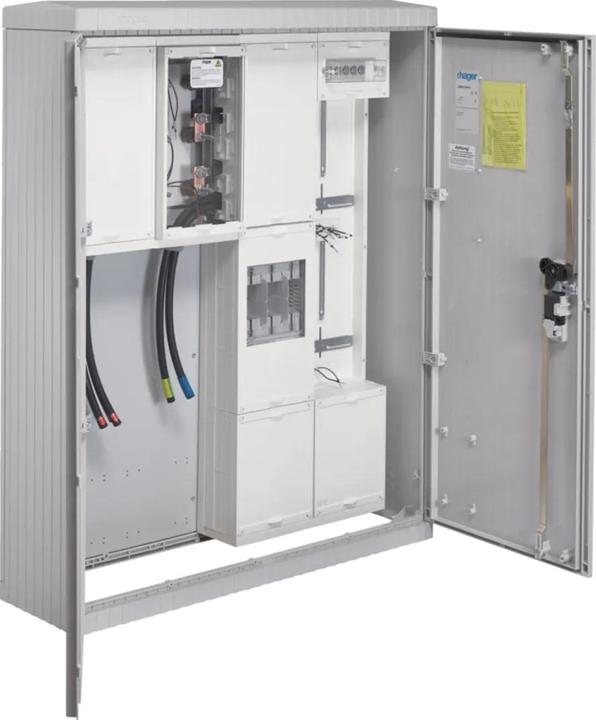

Converter and measurement cabinet for outdoor use, universally applicable, up to 250 A, dimensions 1355 x 1110 x 315 mm. Equipped converter cabinet according to DIN EN 61439, protection class IP 44, made of glass fiber reinforced polyester FS 833.5 according to DIN EN 14598 with recyclate. The converter cabinet is equipped according to the current technical connection conditions of the respective energy supplier and meets the corresponding TAB requirements. Profiled housing in ribbed design. Door with an opening angle of 180 degrees when free-standing and 90 degrees when cabinets are placed side by side. Doors are detachable, with left or right hinge options. Locking with a swivel lever and three-point latch with 1 or 2 profile half-cylinders. Built-in cylinder at the bottom with a keyed alike series. A second locking cylinder can be installed at the top after removing the square lock. If no second profile half-cylinder is installed, the second upper opening must be fitted with a blind cover. Ventilation is achieved through labyrinth-shaped ventilation channels and is protected against the ingress of foreign objects. Converter cabinets are built according to the technical guideline "Connection cabinets outdoors/Connection of stationary switch and control cabinets and meter connection columns to the low-voltage network." The installation consists of protection-insulated meter fields DIN 43870 (functional areas) for meters and tariff switching devices (TSG). Meter spaces or TSG spaces are pre-equipped with an IP54 cover. Depending on the design, empty spaces are provided as retrofit fields. Note: The meter connection cabinet must be securely mounted with a base socket. A floor grid is recommended. Consult with the energy supplier.
