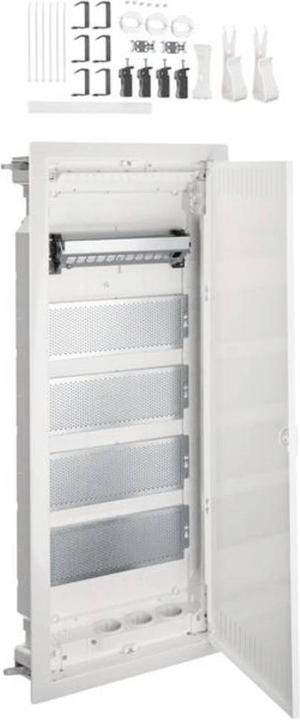

Hager HW-Small distribution board

Price in EUR including VAT
Delivered between Thu, 11.12. and Sat, 13.12.
More than 10 pieces in stock at supplier
free shipping

Product details

Multimedia, volta, HWV, 5-row, with slotted steel door. Installation small distribution board for hollow walls made of plastic, according to DIN VDE 61439-3, suitable for use in residential buildings according to DIN 18015 and for the installation of protective insulated VDI components. Protection class IP30, protection class II, protective insulated. Consisting of: plastic wall box with standard cable catch, breakable cable entry sliders with snap fastening, and integrated spirit level. Hollow wall mounting with quick fixation lever, can be mounted on the side or top/bottom. Rotatable frame with ventilation door made of powder-coated and baked steel sheet, with 15 mm plaster compensation. Ventilation door flush with the front, with internal manually operated hinges. Door lock with flush handle recess and self-retracting handle, door stop on the right or left without frame disassembly. Upper connection area: Patch panel and DIN rail isolated and snapped in for accommodating various communication modules, with 2 screw fastenings available on the patch panel for the required functional potential equalization according to DIN EN 50310 (VDE 0800-2-310). Labeling option with included labeling strip for port labeling. Pre-mounted perforated mounting plates made of galvanized steel sheet with 3.2 mm perforation are installed. A universal holding bracket can be hung directly on the perforated sheet for tool-free mounting of VDI components. In the lower connection area, a 3-fold protective contact socket (90° rotatable) is mounted. The sockets can be equipped with an included protective contact cover to comply with protection class II. Note: A type 3 surge protection module can be connected directly (not included).

Key specifications

Protection type (IP code)
IP30
Distribution cabinet technology Type
Cavity wall distributor
Width
314 mm
Length
360 mm
Height
880.50 mm
Item number
20029575

General information

Manufacturer
Hager
Category
Wiring closet technology
Manufacturer no.
VH60NW
Release date
16.3.2022

Colour

Colour
White
Exact colour description
White

Material

Material group
Plastic
Material
Other material

Distribution cabinet technology Features

Distribution cabinet technology Type
Cavity wall distributor
Protection type (IP code)
IP30
Divisions
12 x

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
360 mm
Width
314 mm
Height
880.50 mm
Depth
94.50 mm

Legal Notice

Product Safety

Package dimensions

Length
89 cm
Width
36 cm
Height
10 cm
Weight
5.50 kg
