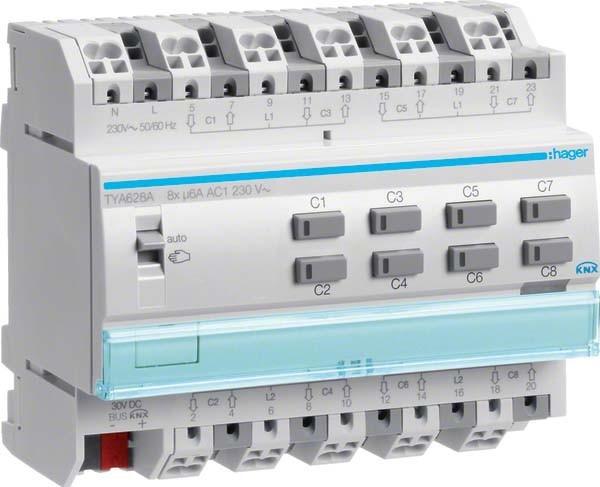

Hager KNX Shutter Output 8-fold TYA628A

Manufacturer: Hager
Description: KNX Shutter Output 8-fold 230V
Type: TYA628A
KNX Bus System: yes
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Wireless: no
Mounting Type: REG
Width in Division Units: 6
With Bus Coupling: yes
Bus Module Removable: no
Local/Manual Control: yes
With LED Display: yes
Switching Current Resistive: 6 A
Max. Switching Power: 1380 W
Max. Number of Shutter Outputs: 8
Switching Function: no
Current Type: AC
Protection Class (IP): IP20

Additional Details: 8-fold shutter actuator, 6A /230V~, KNX. Switching output for controlling 8 shutter outputs. The function allows for the execution of the drive command Up/Down/Stop. Percentage control of the shutter to move to a predefined position. With the sun protection function, brightness can be controlled per room in conjunction with an external sensor. Alarm function to control the shutter to a defined position. Safety descent as long as the button is pressed. 64 scene functions per channel. Logic block to control the output based on the result of a logical linkage. Preset, lock function, forced control. The device converts bus information into corresponding commands. The outputs are switched via the system line from their assigned inputs. All outputs have a manual control on the device, which can also be locked, as well as a switching status display via LED and operating hour counter per output. The device can be read out with a diagnostic tool. Labeling option directly on the device.
EAN: 3250616059580.
