Hager KNX Switching/shutter outga.

Switch actuator
Price in EUR including VAT, free shipping
Delivered between Tue, 1.7. and Thu, 10.7.
Supplied by

Product details

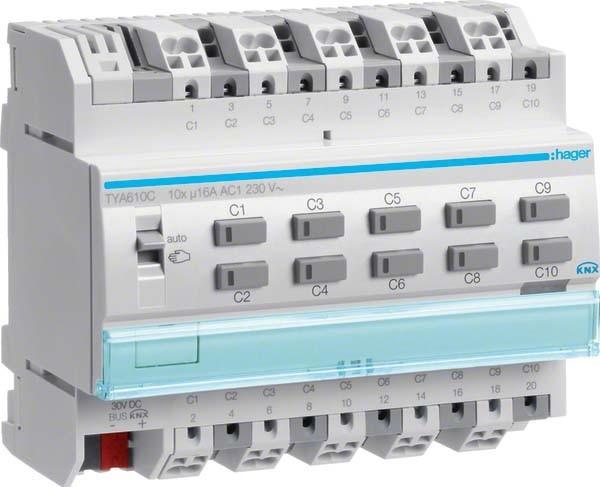

Switch/Blind actuator 10/5-fold, 16A, KNX. Switching output for controlling 10 socket/lighting outputs or 5 blind outputs. For controlling lighting outputs, options include On/Off, time control, safety off, forced control, lock, logic, preset, delay function, or 64 scene functions per channel. With toggle function for time or duration. The blind function allows for up/down/stop commands and adjustment of the slat angle. Percentage control of the blind to move to a predefined position. The sun protection function can control brightness per room in conjunction with an external sensor. Alarm function to control the blind to a defined position. Safety descent as long as the button is pressed. 64 scene functions per channel. Logic block to control the output based on the result of a logical connection. Preset, lock function, forced control. The device converts bus information into corresponding commands. Outputs are switched via the system line from their assigned inputs. All outputs have a manual control on the device, which can also be locked, as well as a switching status indicator via LED and an operating hour counter per output. The device can be read out with a diagnostic tool. Labeling options directly on the device.

Key specifications

Actuator type
Switch actuator
mounting style
Top-hat rail
communicating
Cable
Items per sales unit
1 x
Smart Home Protocol
KNX
Item number
17933473

General information

Manufacturer
Hager
Category
Actuator
Manufacturer no.
TYA610C
Release date
15.12.2021

Colour

Colour
Grey
Exact colour description
Grey

Actuator properties

Actuator type
Switch actuator
Max. Switching capacity
14375 W
rated current
16 A
Operating voltage
230 V
Number of switching outputs
10 x
mounting style
Top-hat rail
Protection type (IP code)
IP20

Smart home features

Smart Home
Compatible
Smart Home Protocol
KNX
communicating
Cable
Radio frequency
60 Hz
Requires Smart Home Hub
No

Origin

Country of origin
Poland

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x

Product dimensions

Length
0.07 m
Width
6 m
Height
0.09 m

Package dimensions

Length
18.70 cm
Width
10.50 cm
Height
7.90 cm
Weight
467 g
