Plaster-mounted small distribution board made of plastic according to DIN VDE 0603/1 and DIN 43871, serving as a termination point meter location (APZ) outside the meter cabinet according to application rule AR4101.

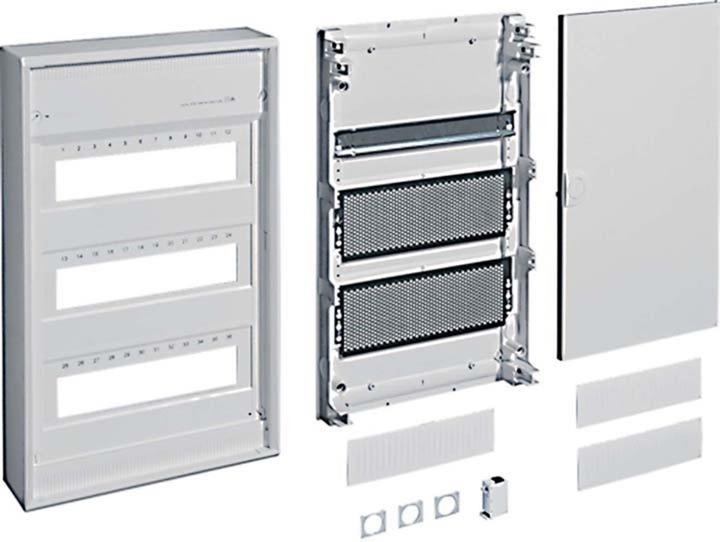

This surface-mounted distribution board APZ consists of a plastic base plate with a standard cable catch, a DIN top-hat rail made of galvanized sheet steel, two perforated mounting plates, an RJ45 socket, and three pipe bushings for electrical installation pipe (pipe diameter 25 mm). It features a plastic device cover with a 46 mm device slot, sealable as standard, and three lockable cover strips. The door is made of sheet steel, powder-coated and baked, and is flush with the front, equipped with internal manually operated hinges. The door lock includes a flush handle recess and a self-retracting handle.

The door hinges can be positioned on the right or left. Please note: the surface-mounted distributor APZ must be installed close to the meter cabinet. Enclosed pipe bushings for empty pipes (not included) are required from the meter location to the APZ as well as from the APZ to the A.
