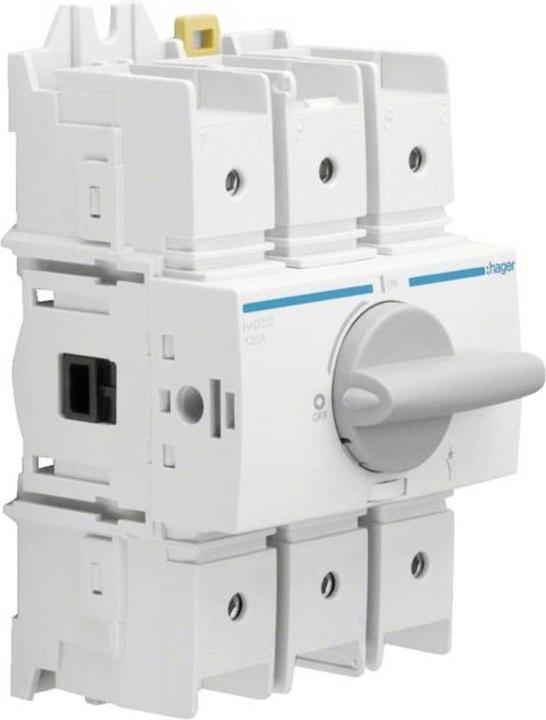

Hager Load Break Switch HAD312

Manufacturer: Hager
Designation: Load Break Switch 3P 125A
Type: HAD312
Design as Main Switch: yes
Design as Maintenance/Repair Switch: yes
Design as Safety Switch: yes
Design as Emergency Stop Device: no
Design as Reversing Switch: no
Number of Switches: 1
Max. Rated Operating Voltage Ue at AC: 415 V
Rated Operating Voltage: 380..415 V
Rated Continuous Current Iu: 125 A
Rated Continuous Current at AC-23, 400 V: 100 A
Rated Continuous Current at AC-21, 400 V: 125 A
Rated Short-Time Current Strength Icw: 2.75 kA
Rated Operational Power at AC-23, 400 V: 56 kW
Switching Capacity at 400 V: 82 kW
Conditional Rated Short-Circuit Current Iq: 25 kA
Number of Poles: 3
Motor Drive Optional: no
Integrated Motor Drive: no
Voltage Release Optional: no
Device Type: Built-in Device Fixed Installation Technology
Suitable for Floor Mounting: yes
Suitable for Front Mounting 4-Hole: no
Suitable for Central Front Mounting: no
Suitable for Distribution Installation: yes
Suitable for Intermediate Installation: no
Color of the Operating Element: gray
Design of the Operating Element: short rotary handle
Lockable: yes
Connection Type Main Circuit: Screw Connection
With Pre-assembled Wiring: no
Protection Class (IP), front side: IP20
Protection Class (NEMA): other
Width: 78 mm
Height: 125 mm
Depth: 69 mm
Width in Division Units: 4.5

Hager Load Break Switch HAD312: additional details
Three-pole 125A load break switch for DIN rail or mounting plate. Load break switch for installation on DIN rail or mounting plate, rotary drive directly on the device can be locked in the OFF position with a padlock. Ensures switching on and off under load and provides a safety disconnection function in all low-voltage circuits.
