Complete flush-mounted small distribution board made of plastic, in accordance with DIN VDE 60670-24 and DIN 43871, suitable for use in residential buildings in accordance with DIN 18015. For installation of devices up to 63 A with 70 mm installation depth in accordance with dimension standard DIN 43880, rated voltage 400V/50Hz. Protection class IP30, protection class II insulated.

Consisting of: Plastic wall box with standard cable support and break-out cable entry sliders with snap-on fastening, integrated spirit level and galvanised sheet steel fastening lugs. Device support made of galvanised sheet steel, top-hat rails can be installed individually insulated. Plastic appliance cover with 46 mm appliance slot, quick-release fastening with 90° rotation, sealable as standard. Rotatable cover frame with door made of sheet steel, powder-coated and baked, with 15 mm plaster levelling. Door, flush with front with internal manually operated hinges.

Door lock with flush handle recess and automatically retracting handle, door hinges right or left without cover frame installation. Standard wiring diagram mounting in the door and integrated side cable duct with cable retaining clips. Finger-safe PE/N terminal with plug-in technology in easy-to-install snap-in design and N terminal for RCD circuits as standard.

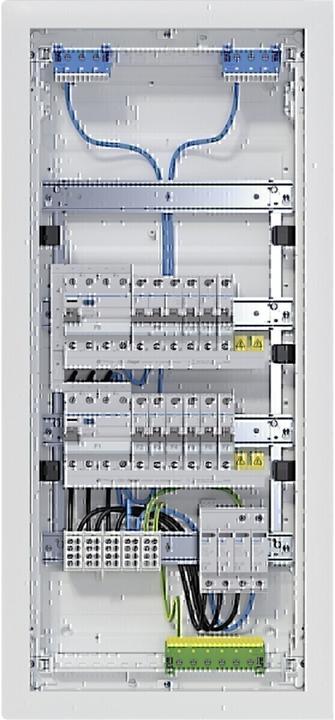

Equipped and wired with:

• 2 x RCDs, 4-pole, 40A
• 9 x LS switch, 1-pole, 16A
• 1 x LS switch, 3-pole, 20A
• 1 x type 2 surge arrester
• 1 main line branch terminal
• including main power wiring.
