Hager Meter Cabinet, universZ ZB22W

Manufacturer: Hager
Designation: Meter Cabinet, universZ

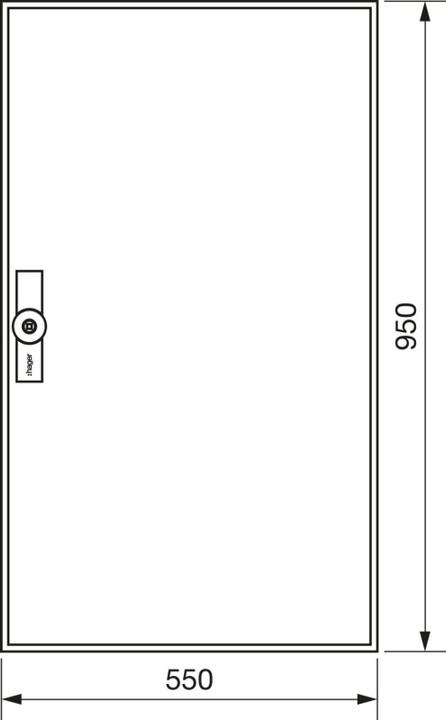

Dimensions: 950 x 550 x 205 mm
IP Protection Class: IP54
Type: ZB22W
Mounting Type: Surface-mounted/partially recessed
Material: Steel sheet
Installation Depth: 205 mm
Height: 950 mm
Width: 550 mm
Depth: 205 mm
With Mounting Rail: no
With Flip Cover: no

Additional Details:
Meter cabinet, universZ, 950 x 550 x 205 mm, protection class II, 144 module units. Cabinet housing according to DIN VDE 0603-1, dimensional standard DIN 43870 for surface-mounted, flush-mounted, or partially recessed installation. Designed for building a meter distribution system up to 355 A, rated voltage 230/400 V 50 Hz. Protection class IP31 (IP44/IP54 according to DIN VDE 0470-1), protection class II insulated, protection class IP3X behind the door.

Consists of a cabinet with a door made of powder-coated, baked, stable profiled 1 mm thick steel sheet. Interior lining completely made of plastic. Cable entries at the top and bottom through built-in plastic flange plates, rear pre-forming in the plastic part, and side-mounted plastic flange plates in the area of the NAR (suitable for busbar entry), the RfZ (only with a height of 1100 mm), and the AAR.

Door flush with the front with internal adjustable hinges, optionally can be hinged on the right or left with a 110° opening angle. Door lock with a latch, from a width of 800 mm and for all cabinets from a height of 1250 mm with a rod lock with three-point closure. Door lock can be replaced with other locks. Cabinets can be flanged side by side and stacked on top of each other. Cabinet size from 1 to 5 fields with 72 to 540 module units (PLE).

Note: Always use a connection set (accessory) for cabinet-to-cabinet connections. In the AAR area, the plastic flange plate can be removed and optionally a protective contact socket (Type F) or a CEE socket can be installed.
