Hansgrohe AXOR ShowerComposition 1 x thermostat module 470/110 Select

Product details:

• Concealed for wall mounting
• Thermostat module, shower holder, bar hand shower, and textile shower hose for 2 consumers
• Simultaneous use of several consumers possible
• Switching the water on/off by sliding the handle
• Temperature and volume control
• Safety lock at 40°C
• Adjustable temperature limit
• Thermostatic cartridge to regulate the temperature
• Start/stop valve for operating consumers
• With backflow preventer
• Spray type hand shower: Rain and Mono
• Depending on flow rate and installation situation
• Approx. 50% flow reduction and integrated shut-off function
• Hose nut: Shower hoses with a cylindrical nut

Technical data:

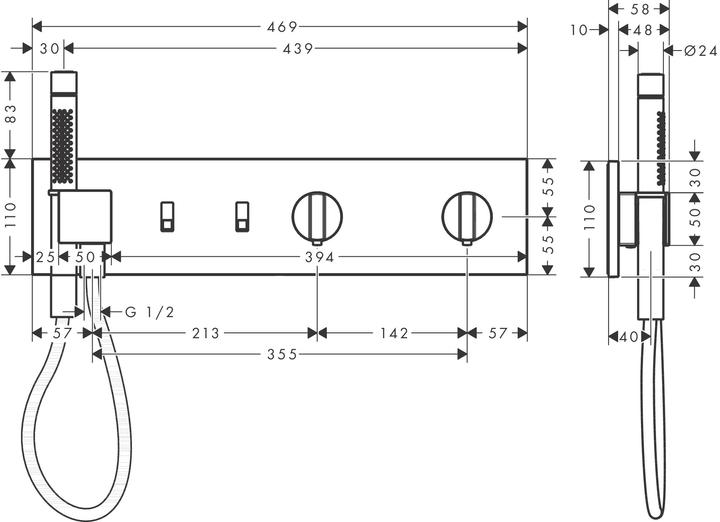

• Dimensions: 470 x 110 mm
• Max. flow rate at 3 bar: 32.7 l/min
• Flow rate lower outlet: 20 l/min
• Min. operating pressure: 1 bar
• Max. operating pressure: 10 bar
• Noise group: I
• Flow rate class: B
• Connection type: Base unit for thermostat module Select (item no.: 18310180)
• Base unit not included in scope of delivery, please order separately.
