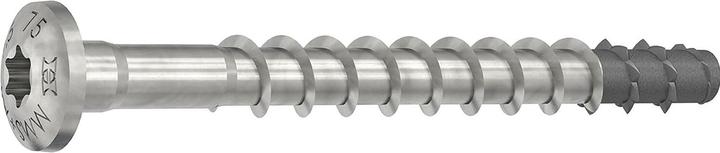

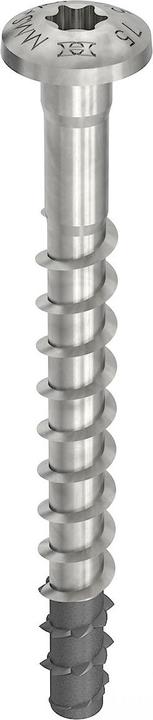

The innovative screw anchor for concrete and masonry in indoor and outdoor areas. The MULTI-MONTI®-plus A4 screw anchor (MMS-plus A4) is an advancement of the MULTI-MONTI® A4 concrete screw. It is screwed directly into a pre-drilled hole without a plug and is immediately load-bearing. The reinforced threading at the tip of the screw cuts an internal thread into the building material during installation. This creates a form fit, which ultimately secures the anchor. This not only simplifies the installation process but also ensures a high level of application safety for the craftsman. The MULTI-MONTI®-plus A4 concrete screw can be processed close to the edge and without a torque wrench, and it is completely disassemblable.

Product advantages MMS plus:

• The screw anchor with the highest installation comfort
• Optimized concrete thread for a powerful anchoring
• Up to three setting depths for more flexibility
• Expanded product range for more applications
• Available in stainless steel A4 1.4401, stainless steel 1.4529 / HCR on request
• Phosphated functional tip for secure undercutting of the concrete
• Approved and monitored product for cracked and uncracked concrete
• European Technical Assessment: ETA 15/0784

Note: Tip phosphated
Drill diameter (mm): 6
Brand: Hecotfix
Max. usable length (mm): 5
Min. usable length (mm): 5

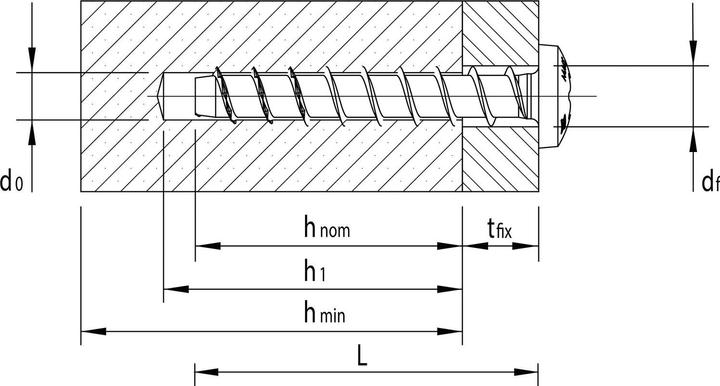

Anchoring depth (mm): 35
Material: Stainless steel
Head shape: Round head
d1 (mm): 7.5
Head diameter (mm): 13.6
Drive: T30
Drilling depth (mm): 40
L (mm): 40
Anchoring depth (mm): 35
Size (mm): 7.5 x 40
Surface: A4
Shape: MMS plus
Thread length (mm): 36
Quantity (pcs): 50.
