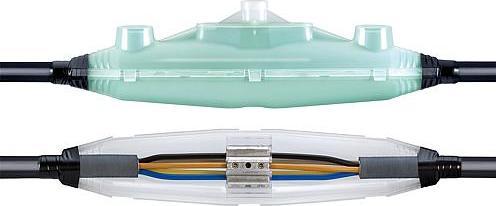

HellermannTyton Connection Sleeve i-2 Prem.PUR33-GN-SF

Manufacturer: HellermannTyton
Designation: Connection sleeve 5x1.5 to 5x16
Type: i-2 Prem.PUR33-GN-SF
Rated voltage U0/U (Um): 0.6/1 (1.2) kV
Design: Casting resin
Material of insulation: Plastic
For connecting paper-insulated to plastic-insulated cables: no
Conductor nominal cross-section: 1.5..16 mm²
Mining approval: no
With concentric shielding: no
Suitable for: N(A)YY
Connection accessories included: Screw connector
Halogen-free: no

Additional details:
Two-part, impact-resistant, transparent, and re-openable form shells made of PP. Defined cable diameters on the form shells. Transparent double-chamber bag. Integrated color change from blue to green ensures visual control of whether the resin is properly and homogeneously mixed. SF system (simple and clean filling of the sleeve shell without having to cut open the bag). Ready for immediate use. Longitudinal and transverse waterproof. Set can be cast under water influence. Shelf life 48 months. Mixed resin residues can be disposed of in household waste. The RELICON Premium connection sets are additionally equipped with an integrated connector block. They are suitable for electrical installations in low-voltage networks. They are universally used for plastic cables and lines made of PVC, PE, EPR, and VPE such as N(A)YY and NYCWY.

Areas of application: Connections and junctions in industrial buildings, energy supply in the ground, outdoors, and in water.
