Hensel Cable Junction Box FK 0606

Manufacturer: Hensel
Designation: Cable junction box 1.5-6 mm², 5-pole
Type: FK 0606
Max. conductor cross-section: 6 mm²
Fitting: Screw terminal
Shape: Square
Mounting type: Wall/Ceiling mounting
For pipe diameter: Other
Rear entry: No

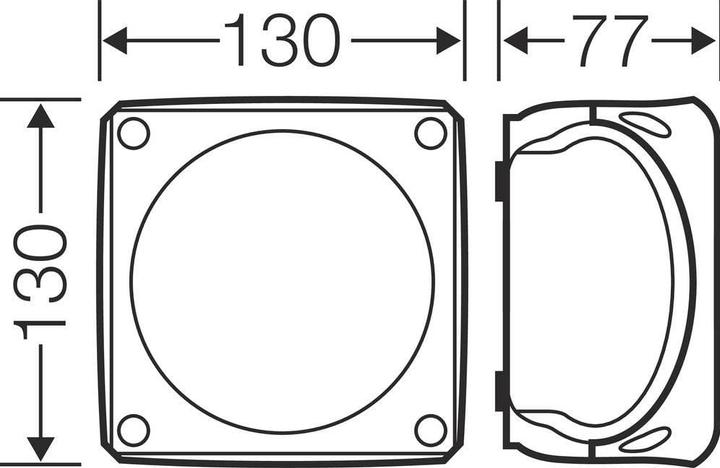

Length: 130 mm
Width: 130 mm
Depth: 77 mm
Stackable: No
Number of entries: 7
Type of housing entry: Pre-formed
Material: Plastic
Halogen-free: Yes
Surface protection: Other
Color: Orange
Protection class (IP): IP66
Cover design: Other
Cover fastening: Screwed
Pourable: No
With potting compound supplied: No
Seal-able: Yes
Rated insulation voltage Ui: 400 V
Function maintenance: E90
With shielding: No
Weather-resistant: No
Operating temperature: -25 to 40 °C
Explosion-proof version: No
For Ex-zone gas: None
For Ex-zone dust: None

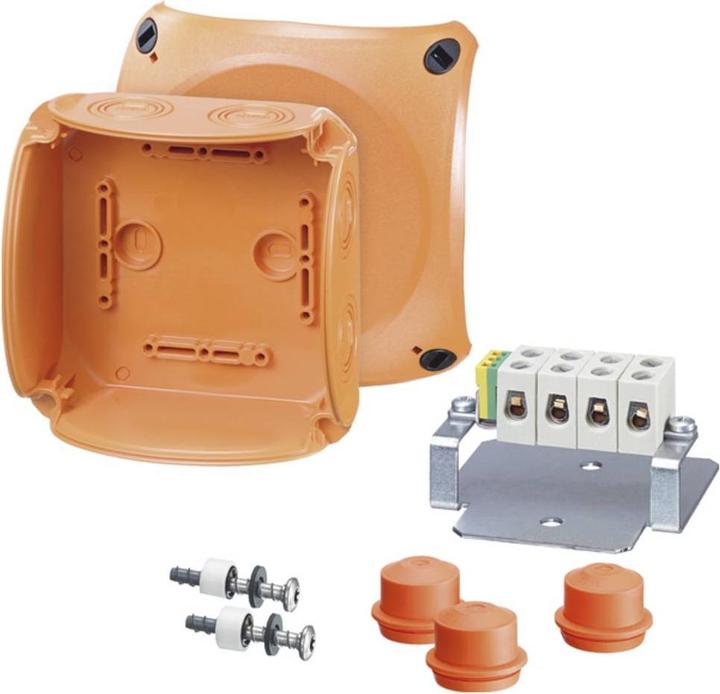

The FK 0606 cable junction box is made of high-quality thermoplastic and provides function maintenance in the event of a fire when used with function-maintaining cables. The function maintenance class ranges from E30 to E90. It is suitable for surface-mounted applications in buildings or for protected outdoor installation. It is standardly equipped with a screw anchor and high-temperature resistant ceramic terminal for copper conductors. Cable entry is achieved through metric pre-formed entries in the housing walls using the included plug-in cable connector. The cover is fastened with quick locks. The box features a 5-pole terminal and can be used as a junction box or connection box for conductors up to 6 mm². Mounting cable connectors of type AKMF are available as accessories.
