Hensel HENS fuse switch disconnector housing

Price in EUR including VAT
Ratings
BrandMore from Hensel
Delivered between Fri, 24.4. and Tue, 5.5.
free shipping

Product details

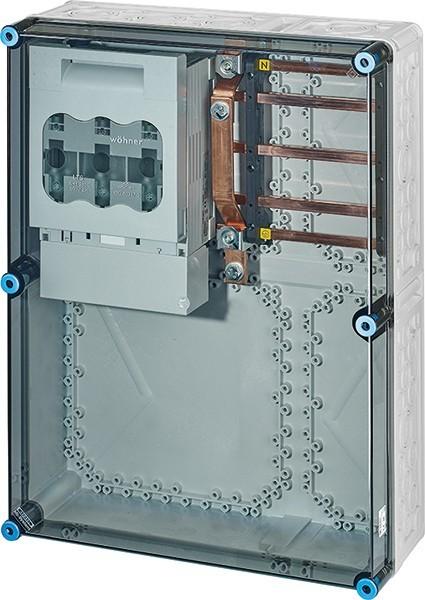

Hensel Mi-NH fuse-switch disconnector housing Mi 6680

Manufacturer: Hensel
Designation: Mi-NH fuse-switch disconnector housing 1xNH 1,a. 250A, 5p.
Type: Mi 6680

Equipment of the fuse switch disconnector housing: with fuse switch disconnector
Number of poles: 3
Rated operational current Ie: 250 A
Max. rated operating voltage Ue at AC: 800 V
Rated insulation voltage Ui: 690 V
Size of fuse links: NH1
With fuse monitoring: no
Housing width: 450 mm
Housing depth: 255 mm
Housing height: 600 mm
Protection class (IP): IP65

Further details:
Enclosure for the construction of energy-switchgear combinations up to 630 A or as a single enclosure. Made of high-quality polycarbonate with protective insulation. Wall bushings with large openings for the electrical connection between the enclosures. Cable entry on all enclosure walls via metric knockouts or mounting flanges. Enclosures for wall mounting also via external brackets or with mounting rails. Enclosure with fuse switch-disconnector NH 1, 3-pole, to IEC 60947-3 on busbars. Without supply terminals. With PE and N terminals. Connection direction can be changed. Cover locks for mould operation.

Key specifications

Protection type (IP code)
IP65
Width
450 mm
Height
600 mm

General information

Item number
33780987
Manufacturer
Hensel
Category
Wiring closet technology
Manufacturer no.
20001463
Release date
17.5.2023

Colour

Colour
Grey
Exact colour description
Grey

Material

Material group
Plastic
Material
Polycarbonate

Distribution cabinet technology Features

Nominal current
250 A
Protection type (IP code)
IP65
Nominal voltage
800 V
number of poles
3
Fuse size
NH1
Divisions
1x

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
29,26 kg
Climate contribution
EUR 0,74

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Width
450 mm
Height
600 mm
Depth
255 mm
