Hensel Mi 6665

Price in EUR including VAT
Ratings
BrandMore from Hensel
Delivered between Wed, 26.11. and Wed, 10.12.
free shipping

Product details

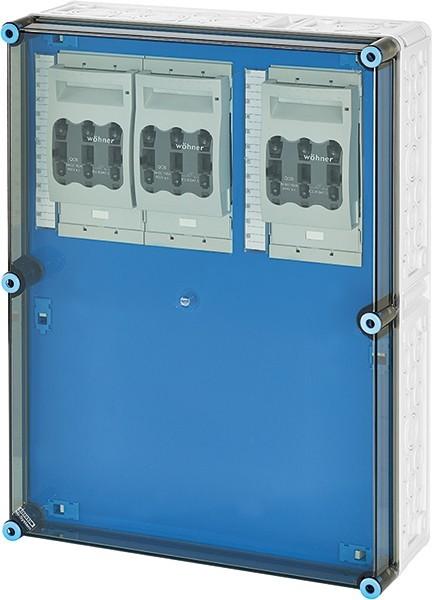

Hensel Mi-NH-Sich load break housings Mi 6665

Manufacturer: Hensel
Designation: Mi-NH-Sich load break housings 3x3xNH00, 250A, 5p
Type: Mi 6665
Fuse switch-disconnector housing equipment: with fuse switch-disconnector
Number of poles: 3
Rated operational current Ie: 125 A
Max. rated operational voltage Ue at AC: 800 V
Rated insulation voltage Ui: 690 V
Fuse link size: NH00
With fuse monitoring: no

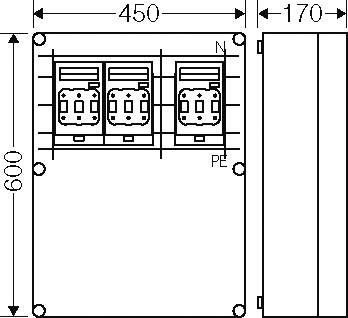

Enclosure width: 450 mm
Enclosure depth: 170 mm
Enclosure height: 600 mm
Protection class (IP): IP65

Hensel Mi-NH-Sich load break enclosure Mi 6665: further details
Enclosure for the construction of energy switchgear combinations up to 630 A or as individual enclosures. Made of high-quality polycarbonate with protective insulation. Panel feed-throughs with large openings for electrical connection between enclosures. Cable entry on all enclosure walls via metric knockouts or mounting flanges. Enclosures for wall mounting also via external brackets or with mounting rails. Enclosure with fuse switch-disconnector NH 00, 3-pole, to IEC 60947-3 on busbars. With supply terminals, PE and N terminals and contact protection. Connection direction can be changed. Cover locks for tool actuation.
EAN: 4012591129639.

Key specifications

Distribution cabinet technology Type
Fuse box
Protection type (IP code)
IP65
Length
170 mm
Width
450 mm
Height
600 mm
Item number
22933340

General information

Manufacturer
Hensel
Category
Wiring closet technology
Manufacturer no.
12963000
Release date
12.10.2022

Material

Material group
Plastic
Material
Polycarbonate

Distribution cabinet technology Features

Distribution cabinet technology Type
Fuse box
Area of use
Inside
Nominal current
125 A
Protection type (IP code)
IP65
Nominal voltage
800 V
number of poles
3
Fuse size
NH00
Divisions
3 x

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
170 mm
Width
450 mm
Height
600 mm
Depth
170 mm
