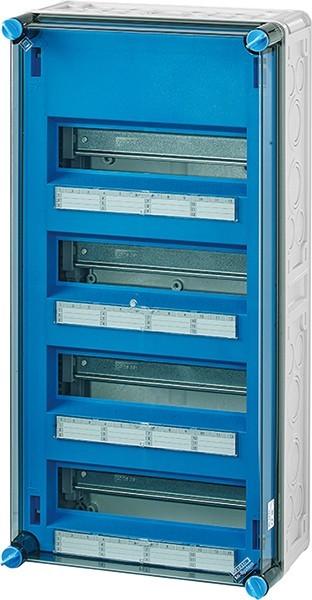

Hensel Mi-Automatic Housing Mi 1441

Manufacturer: Hensel
Designation: Mi-Automatic Housing
Division Units: 48
Type: Mi 1441
Mounting Type: Surface-mounted
Number of Rows: 4
Width in Division Units: 12
Type of Cover: Lid
Cover Design: Closed
Transparent Lid/Door: Yes
Material of Housing: Plastic

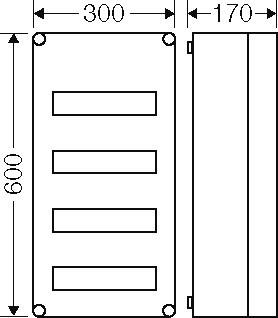

Height: 600 mm
Width: 300 mm
Depth: 170 mm
Installation Depth: 93 mm
Internal Depth: 146 mm
DIN Rail: Yes
With Mounting Plate: No
Mounting Option: Yes
EMC Version: No
Color: Gray
RAL Number: 7035
Protection Class (IP): IP65
With Lock: No

The Hensel Mi-Automatic Housing Mi 1441 is a housing designed for the construction of energy switchgear combinations up to 630 A or as a standalone housing. It is made of high-quality, insulated polycarbonate. Wall penetrations with large openings allow for the electrical connection of the housings to each other. Cable entries are possible on all housing walls via metric pre-formed openings or mounting flanges. The housing can also be mounted to the wall using external tabs or mounting rails.

The automatic housing features 48 division units for the installation of modular devices according to DIN 43880, without PE and N terminals. It is equipped with cover strips to close unused device cutouts and labeling strips for circuit identification. The lid locks are designed for manual operation.
