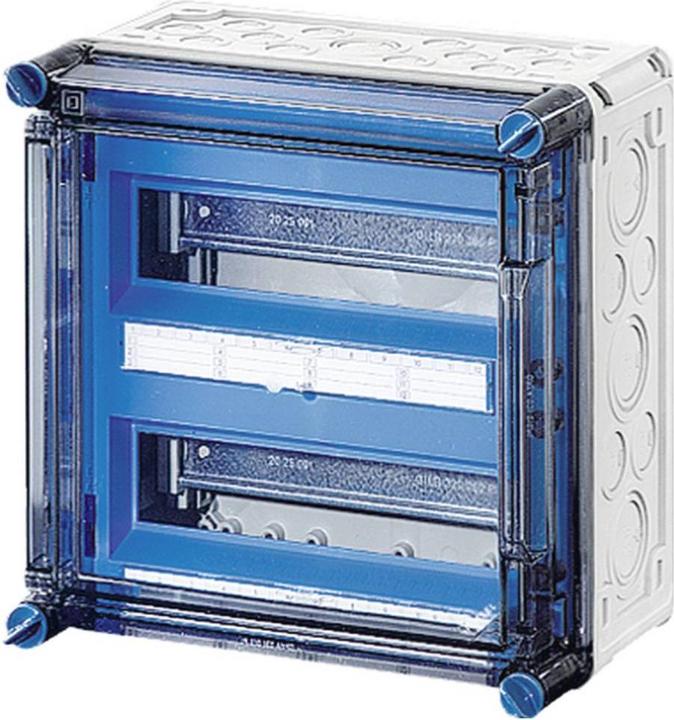

Hensel Automatic Enclosure MI 1220

Manufacturer: Hensel
Designation: Automatic Enclosure
Type: MI 1220
Mounting Type: Surface-mounted
Number of Rows: 2
Width in Division Units: 12
Type of Cover: Door
Cover Design: Closed
Transparent Cover/Door: Yes
With Lock: No
Material of the Enclosure: Plastic
Installation Depth: 93 mm
Internal Depth: 146 mm
DIN Rail: Yes
With Mounting Plate: No
Mounting Option: Yes
EMC Version: No
Color: Gray
RAL Number: 7035
Protection Class (IP): IP65
Height: 300 mm
Width: 300 mm
Depth: 182 mm

Hensel Automatic Enclosure MI 1220: Additional Details
Enclosure for the construction of energy switchgear combinations up to 630 A or as a standalone enclosure. Made of high-quality, protection-insulated polycarbonate. Wall penetrations with large openings for the electrical connection of enclosures to each other. Cable entry on all enclosure walls via metric pre-formed openings or mounting flanges. Enclosure for wall mounting also via external tabs or with mounting rails. Automatic enclosure with 24 division units for the installation of modular devices according to DIN 43880. Equipped with PE and N terminals for copper conductors. N separable for different potentials. Includes cover strips to seal unused device cutouts and labeling strips for circuit identification. Transparent hinged cover, cover locks for manual operation.
