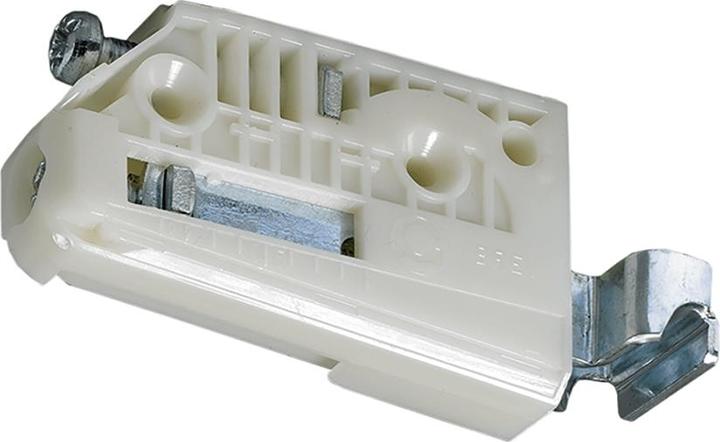

• For screw mounting
• For rail and hook suspension
• Secured against lateral slipping in hook suspension
• Load capacity of 30 kg per piece according to EN 15939 in test frame A

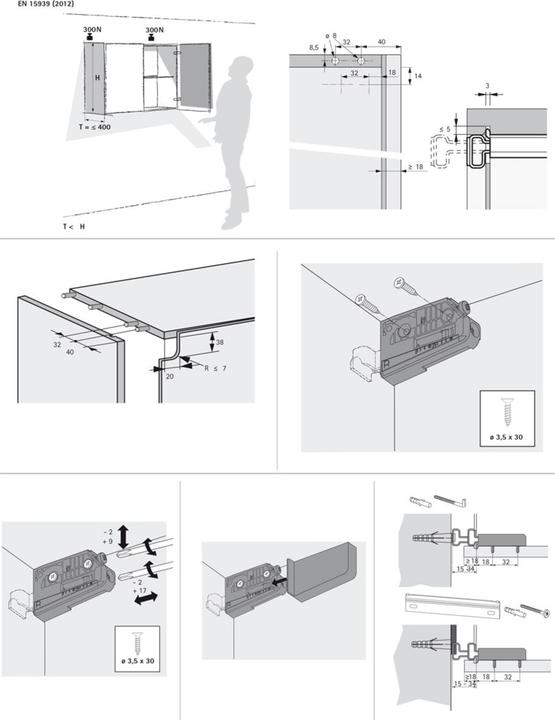

• 3-dimensional alignment: Height -2 / +9 mm, Depth -2 / +18 mm, Lateral for hook suspension ± 6 mm / Lateral for rail suspension ± 7 mm
• Back wall offset (to front edge of back wall) min. 15 mm
• Extraction height 6 mm
• Usable with suspension rail Type A, Type B, Type L
• Galvanized steel / white plastic

Notes on the load capacity of cabinet hangers and accessories:

• Both the furniture construction and the material and manufacturing quality of the furniture are beyond our control.
• We also have no influence on the nature of the wall materials.
• The hanging hooks we offer, in conjunction with dowels, are intended for use in solid bricks, aerated concrete blocks, concrete, or clinker bricks. A hole with a diameter of 8 mm must be drilled into the solid masonry, into which the plastic dowel is flush-mounted. The minimum hook screw-in depth corresponds to the hook length minus 10 mm.
• For fastening to other wall materials, commercially available special fastening elements must be used.
• Dowels and screws must be compatible. Dowels screws must not be replaced with standard particle board screws.
• Mounting of suspension rails:
• with 2 special screws ø 5.5 x 50 mm in the area of each cabinet hanger
• for a body width of 900 mm or more, an additional special screw ø 5.5 x 50 mm must be placed centrally behind each body (Type A, Type B, and Type H).
• Add-ons such as end shelves are not permitted without separate cabinet suspension.
• It is the responsibility of the furniture manufacturer/retailer to ensure that the furniture placed on the market complies with the requirements of EN 14749.
