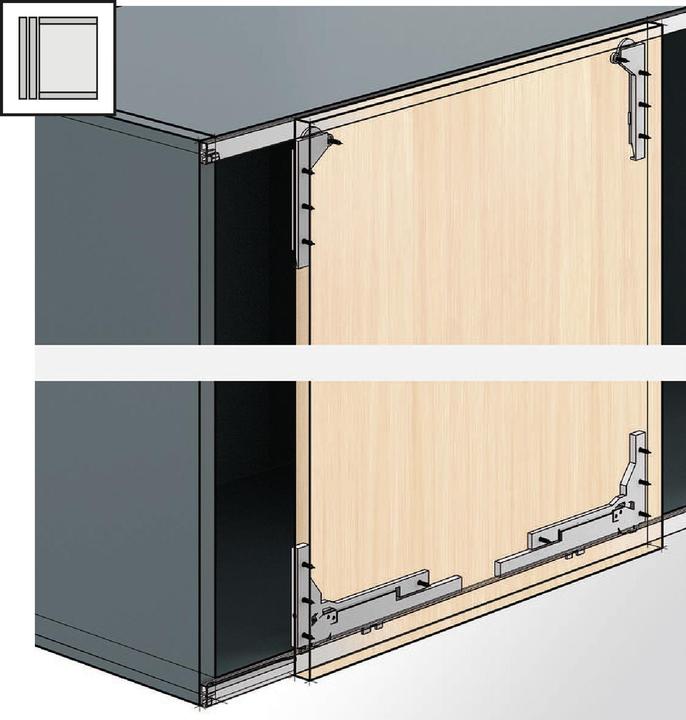

SlideLine M enhances furniture both functionally and aesthetically. This versatile system is suitable for all common furniture constructions for sliding or pocket doors. It can also accommodate stacked doors that run in front of the cabinet. Wooden, glass, or aluminum frame doors with a maximum weight of 30 kg can be quickly and easily installed without tools. There are compatible profiles available for different shelf thicknesses. The Silent System damping mechanism is integrated into the running part in the damped version, softening the doors during closing, opening, and collision.

This hardware set includes all necessary components for an undamped wooden sliding door or a 55 mm aluminum frame door.

Note: Suitable sheet metal screws must be used for mounting on 55 mm aluminum frames.

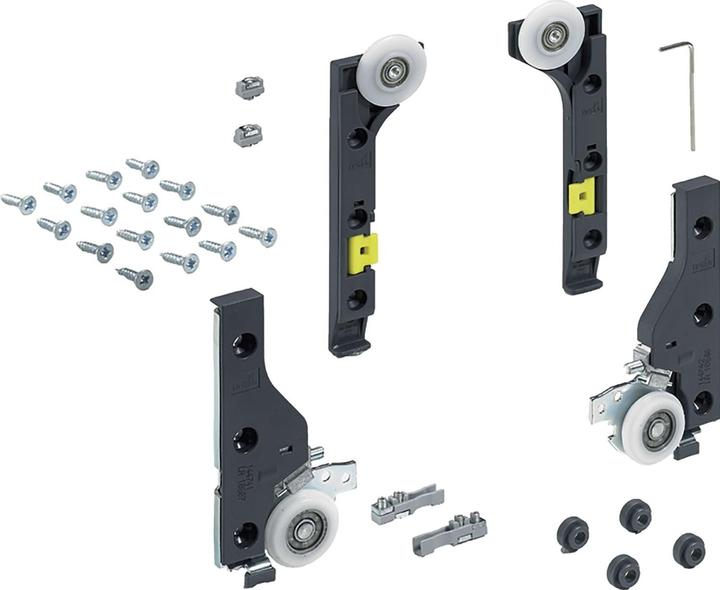

Delivery includes:

• 2 undamped running parts
• 2 guiding parts
• 2 activators
• 2 bottom stops
• 2 top stops
• 4 guiding bushings
• 1 collision damper
• 1 inner hex key (1.5 mm)
• Mounting screws for wooden doors

Wing width (mm): 300 - 1800
Type: SlideLine M
Number of doors: 1 - 2
Door thickness (mm): 16 - 25
Wing height (mm): maximum 2000 or double the wing width
Factory number: 9156339
Height adjustment ± (mm): 2
Product type: Furniture hardware
Brand: Hettich
Front material: Wood
Maximum front weight (kg): 30
Surface: anthracite
Material: Plastic
Quantity (pcs): 1.
