SlideLine M enhances furniture both functionally and aesthetically. This versatile system is suitable for all common furniture constructions for sliding or pocket doors. It can also accommodate doors that slide over each other in front of the cabinet. Wooden, glass, or aluminum frame doors with a maximum weight of 30 kg can be quickly and easily installed without tools. There are suitable profiles available for different shelf thicknesses. The Silent System damping mechanism is integrated into the running part in the dampened version, softening the doors during closing, opening, and collision.

This hardware set includes all necessary components for a dampened sliding door made of wood or a 55 mm aluminum frame.

Note: Suitable sheet metal screws must be used for installation on 55 mm aluminum frames. The running profile must be ordered separately.

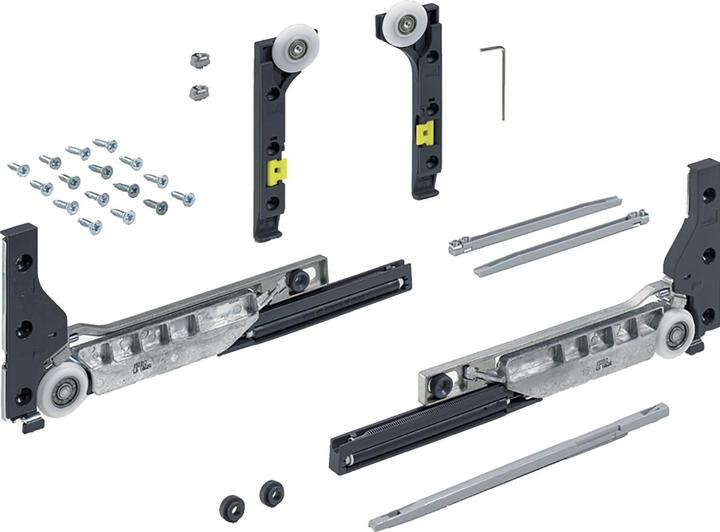

Scope of delivery:
2 dampened running parts
2 guide parts
2 actuators
2 top stops
2 guide bushes
1 collision damper
1 1.5 mm hex key
Mounting screws for wooden doors

Type: SlideLine M
Wing width (mm): 450 - 1800
Wing height (mm): maximum 2000 or double the wing width
Factory number: 9201921
Number of doors: 1 - 2
Door thickness (mm): 16 - 25
Height adjustment +/- (mm): 2
Product type: Furniture hardware
Brand: Hettich
Maximum front weight (kg): 10
Front material: Wood
Glass material: Plastic
Surface: Anthracite
Content (ST): 1.
