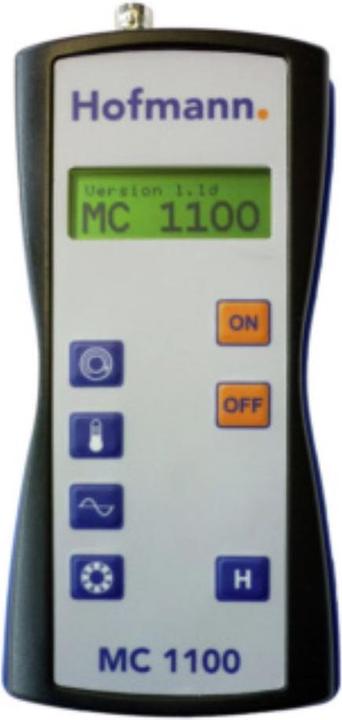

Multi-function vibration meter MC 1100 for vibration, speed, temperature, and belt tension measurements.

Application: The MC 1100 is suitable for measuring vibrations on machines and systems, evaluating the condition of rolling bearings, checking machine speed, detecting critical operating ranges, and early damage detection. Optional accessories can also be used to measure temperature and belt tension.

Design: Robust plastic housing, high-contrast backlit LCD display (122x32 pixels), 1x BNC measuring input for vibration transducer, 1x mounting socket, 5-pole for frequency/temperature sensors, including acceleration sensor HMA 1140 (100mV/g) with 1.5m cable length. Dimensions (WxHxD): 80x160x40mm.

Advantage: Ideal for assessing the vibration condition of rotating machines according to ISO 10816 - 1 to 6. Easy to understand, reliable operator guidance, capture of the most important measured variables in one measuring device, portable and quick to use.

Delivery: Measuring device, acceleration sensor HMA 1140, probe tip, magnetic base, charger, and carrying case.
