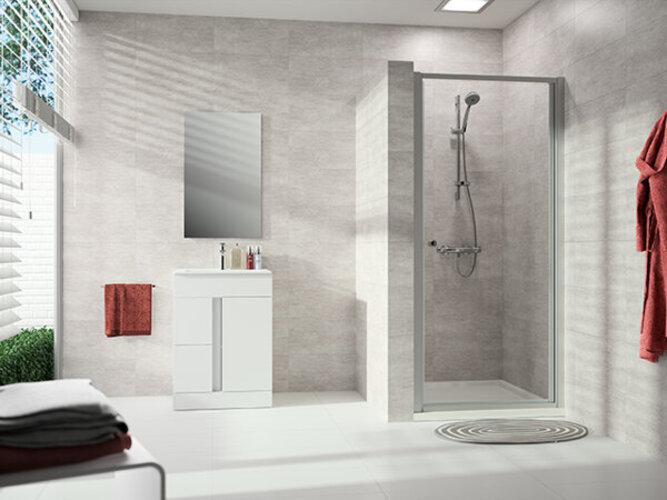

Hüppe Alpha 2 1 x Swing Door, Square, Semi-Framed

Product Features:

• For installation in a niche to combine with Alpha 2 side panel
• Semi-framed door with a glass panel, opening inwards and outwards
• Profiles made of high-quality anodized aluminum
• Chrome-plated plastic knob handle in high-gloss silver
• Lift-lower mechanism with 3.5 mm lifting effect
• Adjustment option in the wall profile of 23 mm with floor profile (height 41 mm)
• Continuous magnetic strips and sealing profiles
• Water-repellent horizontal sealing strip suitable for installation on shower trays and tiled floors
• Handle: Knob handle, flush installation possible
• Left and right mounting
• Assembly condition: partially assembled
• Glazing: 5 mm single-pane safety glass according to DIN EN 12150, optionally with the easy-care surface finish Hüppe Anti-Plaque

Dimensions:

• Height: 1900 mm
• Adjustment range in niche: 80 mm
• Adjustment range with side panel: 45 mm
• Bathtub installation dimension in niche: 754-800 mm
• Bathtub installation dimension in side panel: 765-810 mm
• Width of entry: 640 mm
• When installed on tiled floor: Installation dimension center glass: 754-800 mm
• Installation dimension (center glass) side panel: 745-790 mm

Delivery Includes:

• Swing door, mounting materials, and installation instructions including HÜPPE bead system - installation without visible screws in the wall profile area

Optional Installation Accessories:

• For a widening of 15 mm for a wall profile width of 30.4 mm, the widening profile can be used. Please order separately!
• U-shaped installation possible, U-cabin bracket set required. U-cabin bracket set not included, please order separately!

Note:
The specified dimensions of the shower cabin refer only to installation on shower trays. For flush installation, the dimensions may vary; please provide the exact measurements of the shower area before ordering! For this item, measuring and installation service is recommended!.
