Hüppe Alpha 2 1 x Sliding Door, 1/4 Circle, Fully Framed

Product Features:

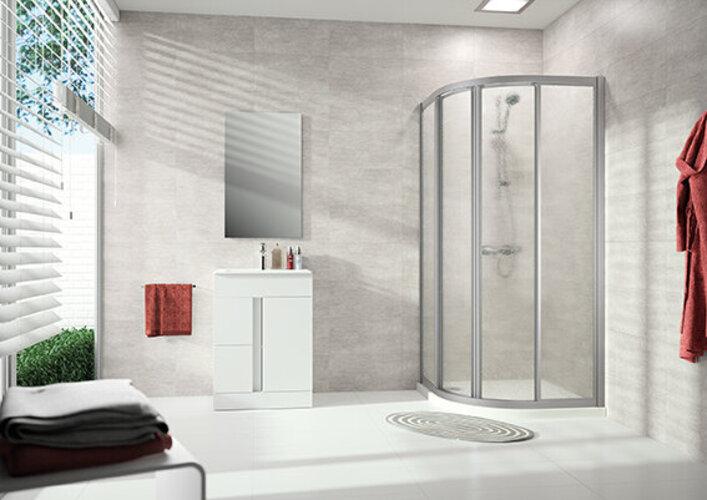

Framed quarter-circle shower enclosure with two sliding door segments that open from one side, along with two fixed segments. Profiles and handle strips made of high-quality anodized aluminum. Adjustable wall profile by 25 mm. Detachable sliding door segments for easy cleaning. Includes a floor profile (height 41 mm) and continuous magnetic strips in the handle strip for optimal door closure. Suitable for installation on shower trays and tiled floors.

Handle: Handle strip allows for flush installation. Left and right mounting options. Assembly condition: partially assembled.

Glazing options available: Glazing with 2 mm acrylic glass Pacific S or 4 mm single-pane safety glass according to DIN EN 12150. Optionally available with the easy-care surface finish Hüppe Anti-Plaque (only with safety glass).

Dimensions:
Height: 1900 mm
Standard adjustment range: 25 mm
Standard installation size for shower tray: 885-910 mm
Width of fixed panel: 337-362 mm
Width of entry: 490 mm
Radius: 550 mm
For installation on tiled floors: Installation measurement center glass: 855-880 mm
Radius: 520 mm

Delivery includes: Sliding door, mounting materials, and installation instructions including HÜPPE bead system - installation without visible screws in the wall strip area.

Optional installation accessories: For a widening of 15 mm for a wall strip width of 30.4 mm, the extension profile (Item No.: 141001 for 1900 mm height and Item No.: A21005 for 2000 mm height) can be used. Please order separately!

U-shaped installation possible, U-cabin bracket set required. U-cabin bracket set not included in delivery, please order separately!

Note: The specified dimensions of the shower enclosure refer only to installation on shower trays. For flush installation, the dimensions may vary; please provide the exact measurements of the shower area before ordering! For this item, measuring and installation service is recommended!.
