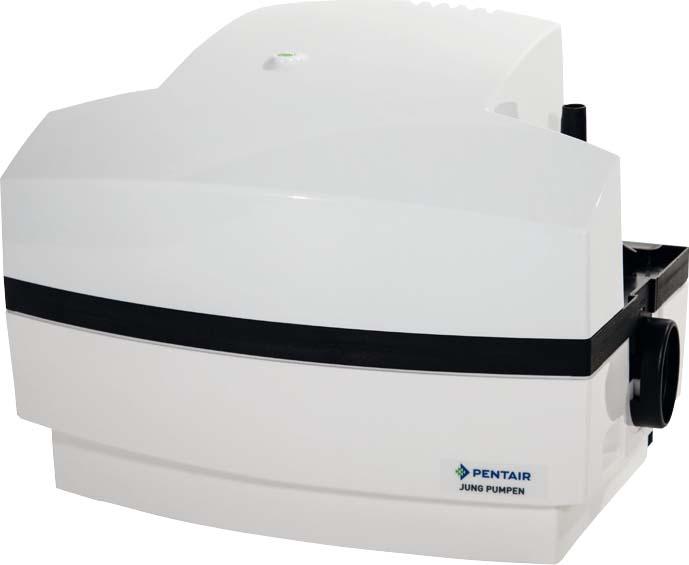

Design motor in plastic housing (protection class IP 44), suitable for floor-standing or wall-mounted installation, continuous shaft for pump impeller in the container bottom, low-lying hydraulics with a special free-flow wheel for safe venting, collection container of 1.4 liters with a usable volume of 0.9 liters, inlet openings 2 x Ø 28 mm, 1 x Ø 33 mm, inlet height 95 mm, pressure connections Ø 11 and 13 mm for transparent pressure hose with an inner diameter of 10 or 12 mm. Collection container with emergency overflow for targeted drainage of condensate in case of malfunction. Motor is a maintenance-free split-phase motor with an integrated motor protection thermostat for shutdown in case of overheating. Switching is done via an automatic float switch, with a two-stage alarm featuring a potential-free changeover contact. Materials: motor shaft, screws, and motor bracket made of high-quality stainless steel; collection container, platform, and impeller made of durable plastic. Dimensions: 193 x 270 x 162 mm. Ready-to-connect system with 2 m power cable and Schuko plug, 6 m PVC pressure hose with transition piece DN 50.

Installation note according to § 13 NAV

Please note that devices with a connection value of 230V will be delivered either with a protective contact plug or a fixed connection (without plug) depending on the power rating. If the device has a fixed connection, a qualified company must be commissioned for installation. All devices with a connection value of 400V and above must be operated via a suitable high-voltage connection and may only be connected by a qualified electrician. For devices with a rated power of more than 12KW, approval from your network operator is required. Please contact the network operator or a registered installation company in the network operator's installer directory before installation. Such an installation company will assist you in obtaining the necessary approval from the respective network operator.
