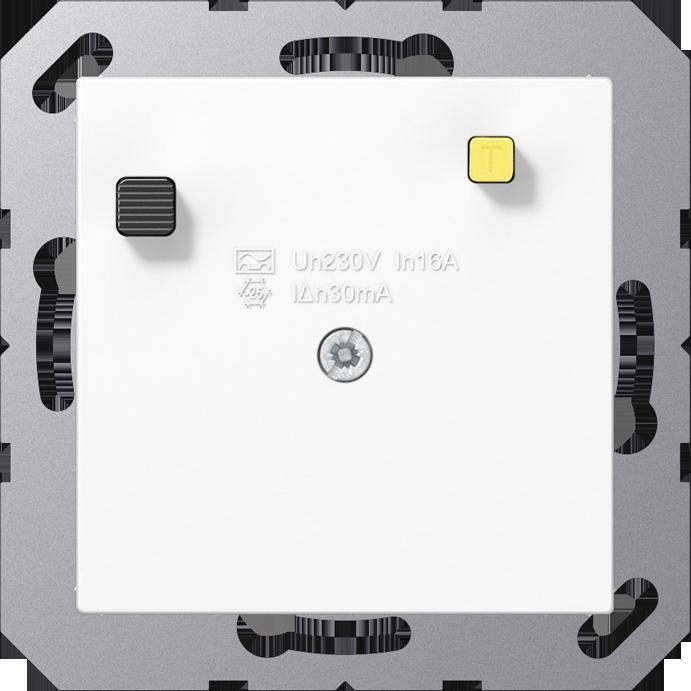

Jung FI Residual Current Circuit Breaker A 5530 FIB WW

Manufacturer: Jung
Description: RCD 16A 250V 30mA
Type: A 5530 FIB WW
Number of Poles: 2
Rated Voltage: 230 V
Rated Current: 16 A
Rated Residual Current: 0.03 A
Mounting Type: Built-in
Residual Current Type: A
Selective Type: No
Short-time Delay Type: No
Short-circuit Strength (Icw): 3 kA
Surge Current Strength: 0.25 kA
With Locking Mechanism: No
Frequency: 60 Hz
Protection Class (IP): IP20
Installation Depth: 32 mm
Ambient Temperature during Operation: -25..40 °C
Connectable Conductor Cross-section for Single Wires: 1.5..2.5 mm²

Additional Details:
Material: Thermoplastic according to DIN EN 61008-1 (VDE 0664-10) and DIN EN 61008-2-1 (VDE 0664-11)
Rated Residual Current: 30 mA with spring terminals for rigid conductors up to 2.5 mm², not suitable for surface-mounted installations
To be connected to 2- or 3-wire supply lines.
Installation in a 60 mm flush-mounted box (recommendation: deep box).
Fixed protective device with voltage-independent function.
The sockets connected to the outgoing terminals are protected in accordance with DIN VDE 0100-410.
However, the electrical installation up to the RCD is not protected!
EAN: 4011377148833.
