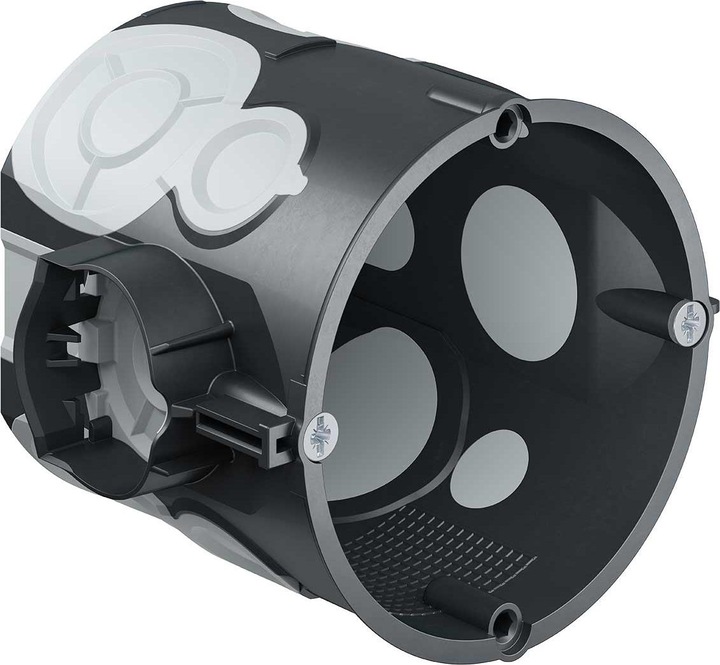

Kaiser Device Connection Box 1556-21

Manufacturer: Kaiser
Designation: Device Connection Box
Type: 1556-21
Mounting Type: Flush-mounted
Shape: Round
Design: Device Connection Box/Cabinet
Version: Single
With Rotatable Ring: No
Coupleable: Yes
Filling: None

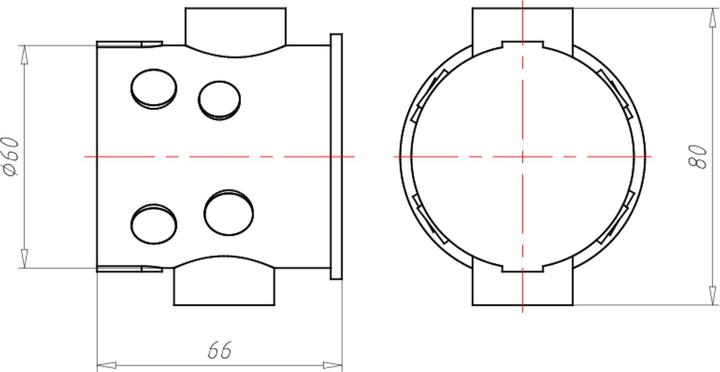

Diameter: 60 mm
Depth: 66 mm
Inner Depth: 65 mm
Device Attachment: Screws or Expansion
With Screws: Yes
Housing Entry through Breakout Opening: No
Housing Entry through Sealing Membrane: Yes
Housing Entry through Pipe Connection: Yes
Housing Entry through Step Membrane: No
For Pipe Diameter: 20/25 mm
Suitable for Cable Diameter: 13.3 mm
Pipe Locking: Yes
Pipe Locking Optional: No
Rear Entry: No
Number of Entries: 12
Material: Plastic
Halogen-Free: Yes
Color: Black
Protection Class (IP): IP2X
Cover Version: None
Transparent Cover: No
Cover Attachment: Screwed
Seal-able: No
Function Preservation: None
With Shielding: No
Air Tight: Yes
Max. Conductor Cross Section: 2.5 mm²
Terminal Position Fixed: No
Light Hook Attachment: No
Connection: Tunnel Connection
Special Application: Other
With Partition Wall: No

Kaiser Device Connection Box 1556-21: Additional Details
Device Connection Box ECON® 15, air-tight, with device screws, depth 66 mm (1556-21). Flush-mounted boxes with ECON® technology guarantee an air-tight installation. They offer a variety of options for air-tight pipe and cable entry and can be plastered in or processed with KLEMMFIX®.
Application Area: For Built-in Devices | Device Screws: 2 | Depth: 66 mm | Air-tight: Yes | Installation Type: GEG air-tight.
