Kaiser Wall light junction box

Price in EUR including VAT
Ratings
Delivered between Fri, 4.7. and Tue, 8.7.
More than 10 pieces in stock at supplier
Free shipping starting at 30,–

Product details

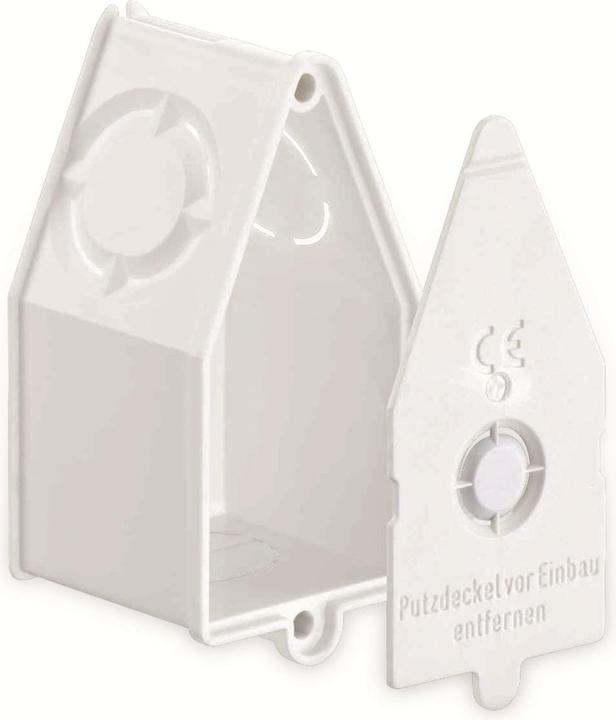

Kaiser Wall Light Connection Box 1048-00

Manufacturer: Kaiser
Designation: Wall Light Connection Box
Type: 1048-00
Mounting Type: Flush-mounted
Shape: Other
Design: Connection Box
Version: Single
With Rotatable Ring: No
Coupleable: No
Filling: None

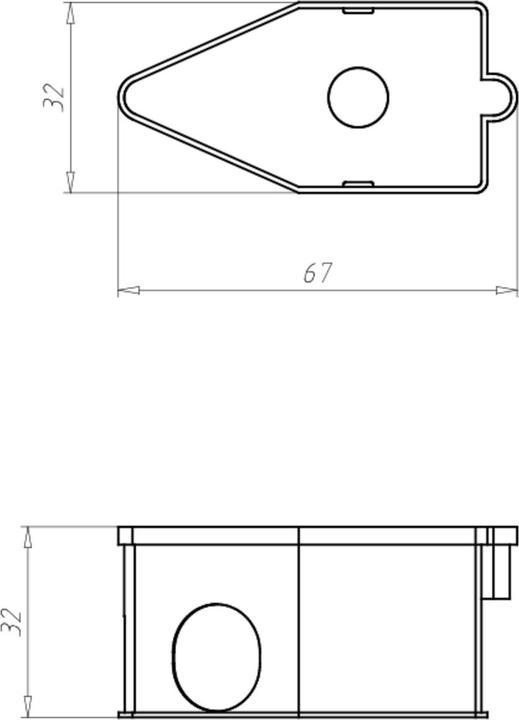

Length: 60 mm
Width: 32 mm
Depth: 30 mm
Internal Depth: 31.2 mm
Device Mounting: Screws
With Screws: No
Housing Entry through Breakout Opening: Yes
Housing Entry through Sealing Membrane: No
Housing Entry through Pipe Socket: No
Housing Entry through Step Membrane: No
For Pipe Diameter: 20 mm
Suitable for Cable Diameter: 11.4 mm
Pipe Locking: Yes
Optional Pipe Locking: No
Rear Entry: Yes
Number of Entries: 4
Material: Plastic
Halogen-free: Yes
Color: White
Protection Class (IP): IP2X
Cover Design: Blank Cover
Transparent Cover: No
Cover Attachment: Snap-on
Seal-able: No
Function Preservation: None
With Shielding: No
Air-tight: No
Max. Conductor Cross-section: 2.5 mm²
Terminal Position Fixed: No
Light Hook Attachment: No
Socket: None
Special Application: None
With Partition Wall: No

Kaiser Wall Light Connection Box 1048-00: Additional Details
Wall Light Connection Box (1048-00).
Installation Type: Basic Installation
Length: 60 mm
Width: 32 mm
Depth: 30 mm
Application Area: For Cable Outlets
Application Area: For Wall Lights.

Key specifications

Junction box type
Connector socket
Height
60 mm
Width
32 mm
Protection type (IP code)
IPX2
Length
60 mm
Item number
17941388

General information

Manufacturer
Kaiser
Category
Junction box
Manufacturer no.
1048-00
Release date
16.12.2021

Colour

Colour
White
Exact colour description
White

Material

Material group
Plastic
Material
Plastic

Junction Box Features

Junction box type
Connector socket
mounting style
Flush-mounted
Area of use
Outside

Safety

Protection type (IP code)
IPX2

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
25 pcs.

Product dimensions

Height
60 mm
Width
32 mm
Length
60 mm

Package dimensions

Length
7 cm
Width
3 cm
Height
5 cm
Weight
10 g
