K'Electric CombiAbl Type123 36mmGTN 40 TTTNS7,5kAB
More than 10 pieces in stock at third-party supplier
Product details

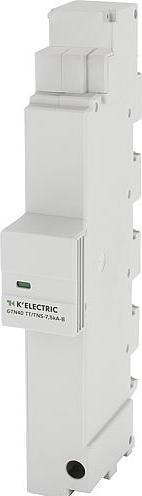

K'ELECTRIC combined arrester type 1 + 2 + 3
Lightning current and surge arrester for TT and TN-S systems according to EN/IEC 61643-11. The arrester is based on varistors and gas discharge arresters, suitable for main power supply systems and busbars with bar spacing of 40mm. It features a visual monitoring indicator, is leakage current free, and has a response time of less than 100ns. The highest continuous voltage is 300V AC, with a maximum back-up fuse of 315A.
This arrester has a very slim design and can handle a lightning impulse current of 7.5kA (10/350μs). It is intended for buildings without external lightning protection and includes an unprotected voltage tap L1 for power supply of the APZ panel and additional room.
Technical data
EAN: 4251630415580
Product group: Surge protection
Manufacturer: KELECTRIC
Supplier article number: 500130
Width: 36mm/2 TE
Type: 4-pole.
Surge protection type | Surge arrester |
Number of conductors | 4 x |
Test class | Type 1 |
Item number | 25166841 |
Manufacturer | K'Electric |
Category | Surge protection |
Manufacturer no. | 133730 |
Release date | 14.4.2023 |
Surge protection type | Surge arrester |
Number of conductors | 4 x |
Lightning impulse current | 7.50 kA |
Rated leakage surge current | 0.32 kA |
Nominal voltage | 300 V |
Test class | Type 1 |
CO₂-Emission | |
Climate contribution |
Length | 2 m |
Width | 0.04 m |
