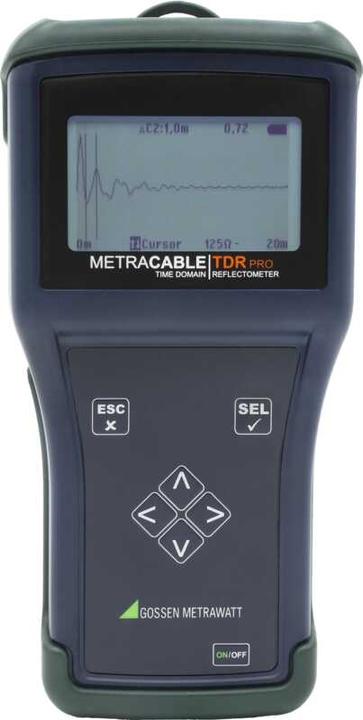

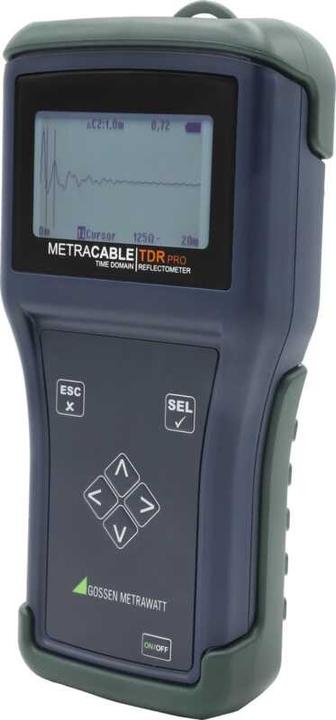

Compact and handy cable fault locator. Perfectly suited for localising faults in all types of cables without service, such as twisted pair cabling, telecommunications twisted pairs, coax and electrical cables. The short dead zone and the long range of up to 14 km allow this handy TDR to be used for a wide range of applications.

Technical data :

• AUTO mode for immediate use
• Can be used with all types of cable
• Maximum cable length up to 14 km
• Freeze function and display in metres/feet
• Symmetrical search signal
• Resolution up to 0.3 m
• High-resolution, graphic display
• Sturdy ABS housing
• Storage of measurements and data transfer via Bluetooth
• Overvoltage protection DC 100 V, AC 230 V / 50 Hz

Supplied with :
+ case
+ Test leads (2x 4 mm banana plugs, 2x crocodile clips / 300 V Cat II)
+ Manager software.
