Laufen Lis cw1 inbouwframe met reservoir 500x1120
Price in EUR including VAT
Supplied by
SHK Badshop DE
free shipping

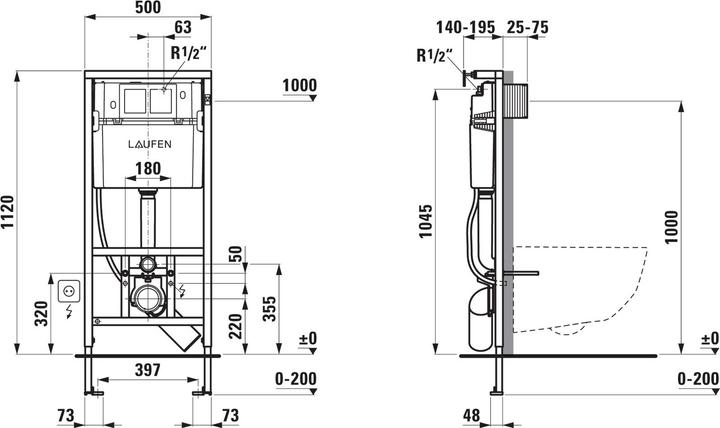

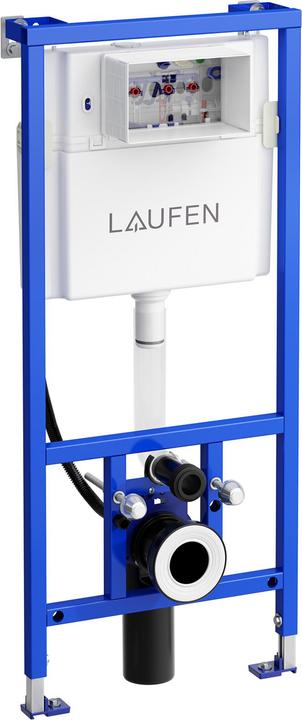

Running CW2 LIS1 x installation system for wall-mounted toilets and shower toilets. Dual flush: dual flush 6/3-liter convertible to 4.5/3-liter or 4/2-liter. Dimensions: 500 x 140 x 1120 mm. Self-supporting steel frame for dry and solid construction for front and in-wall installation with integrated empty pipe for water connection for front operation. Condensation water insulated. Feet height adjustable 0-200 mm and rotatable. Max. load capacity: 400 kg. Water connection at the back R 1/2, brass. Outlet DN 90 / DN 110. Flow pressure range: 0.5-10 bar. Installation depth: 140-195 mm. Includes mounting material.
flush volume | 6 l |
Cistern type | Flush-mounted cistern |
Exact colour description | White |
Item number | 35630554 |
Manufacturer | Laufen |
Category | Toilet tanks |
Manufacturer no. | H8946610000001 |
Release date | 17.5.2023 |
Colour | Grey |
Exact colour description | White |
Material group | Plastic |
Material | acciaio autoportante |
Cistern type | Flush-mounted cistern |
mounting style | Flush-mounted |
Water connection Inlet | Rear |
flush volume | 6 l |
Additional properties | Height-adjustable, Water saving function |
Flush pipe diameter to WC | 90 mm |
Flush pipe diameter to cistern | 110 mm |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 x sistema di installazione, Materiale di montaggio, piedini regolabili in altezza da 0 a 200 mm e ruotabili, telaio in acciaio autoportante, tubo vuoto integrato per il collegamento allacqua per il funzionamento frontale |
Depth | 140 mm |
Width | 500 mm |
Height | 1120 mm |
