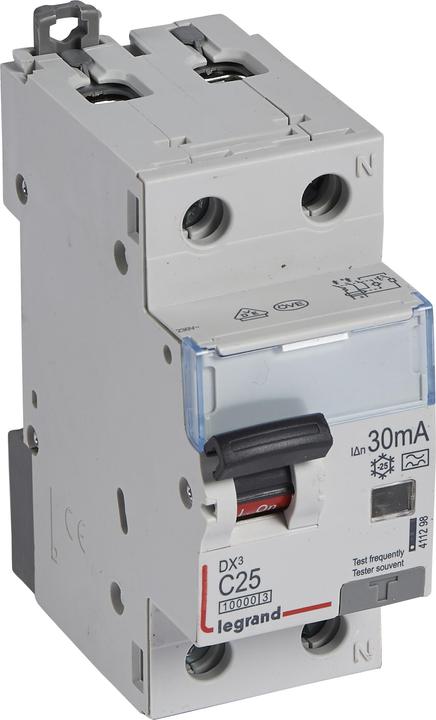

Legrand FI/LS switch 411298
Manufacturer: Legrand
Designation: FI/LS switch C
Characteristics:

• Rated current: 25 A
• Number of poles (total): 2
• Number of fused poles: 1
• Rated voltage: 230 V
• Rated residual current: 0.03 A
• Residual current type: A
• Energy limitation class: 3
• Rated breaking capacity according to EN 61009: 10 kA
• Rated breaking capacity according to IEC 60947-2: 10 kA
• Rated breaking capacity Icn according to EN 61009-1: 10 kA
• Surge current resistance: 0.25 kA
• Voltage type: AC
• Frequency: 50 Hz
• Tripping characteristic: C
• Switching neutral: Yes
• With interlocking device: Yes
• Degree of pollution: 2
• Width in pitch units: 4
• Installation depth: 44 mm
• Flush mounting: Yes
• False tripping protection: No
• Protection class (IP): IP20
• Connectable conductor cross-section solid: 0.75 to 16 mm²
• Connectable conductor cross-section stranded: 0.75 to 10 mm²

Legrand RCCB 411298:
Legrand RCCB DX3, 1-pole with connecting neutral, type A, for AC and pulsating DC residual currents according to EN 61009-1, VDE 0664-20, instantaneous, rated current In 2 A, rated residual current Idn 30 mA. C-characteristic, rated voltage Un 230 VAC, rated frequency 50 Hz, rated breaking capacity Icn 10 kA, surge current resistant up to 250 A, energy limitation class 3. Tripping indication: yellow = fault current or test button tripping, colourless = short-circuit or manual tripping. Mounting on top-hat rail EN 60715 by means of latching quick-release fasteners, clear information on the front of each device, clear switch position indication red/green on the switch lever (lockable), with labelling window, with under-plug protection for safe insertion of the conductor into lift terminal, mounting of auxiliary devices possible.
