Luxen Monocrystalline solar module 370W/36V (pallet)
370 W, 20 kgProduct details
High-quality A-grade half cells offer higher efficiency thanks to the 9-busbar (9BB) design. The tempered ESG solar glass surface features a weatherproof coating. The corrosion-resistant aluminum frame is designed for extended outdoor use and comes with pre-drilled mounting holes. It includes an IP68 junction box with a 300mm long, 4mm² double insulated solar cable and MC4 connector. The three bypass diodes minimize power loss in shaded conditions. The product is SGS-TÜV Saar tested according to valid standards and comes with a guarantee of plus tolerance (0~+3%).

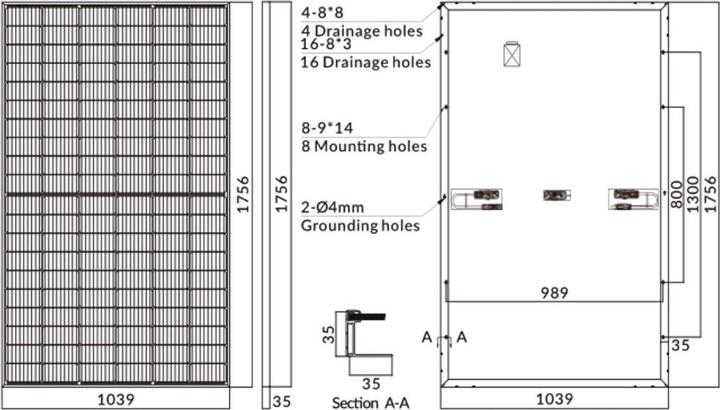

Length | 175.60 cm |
Width | 103.90 cm |
Cell type | Monocrystalline |
Nominal power | 370 W |
Solar panel type | Solar panel |
Documents | |
Item number | 37667710 |
Manufacturer | Luxen |
Category | Solar panels |
Release date | 22.8.2023 |
Frame colour | Black |
Solar panel type | Solar panel |
Socket type | MC4 |
Plug type | MC4 |
Protection type (IP code) | IP68 |
Cell type | Monocrystalline |
Solar panel design | Rigid |
Nominal power | 370 W |
Voltage (MPP) | 34.13 V |
Rated current (MPP) | 10.84 A |
Short circuit current | 11.34 A |
Open circuit voltage (UMPP) | 41.18 V |
Number of cells | 120 x |
Efficiency | 21 % |
Cable length | 0.30 m |
CO₂-Emission | |
Climate contribution |
Length | 175.60 cm |
Width | 103.90 cm |
Height | 3.50 cm |
Weight | 20 kg |
