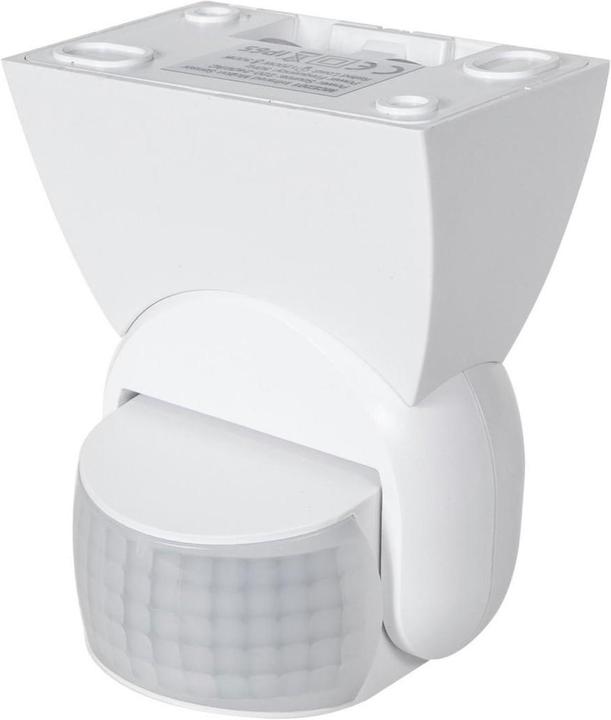

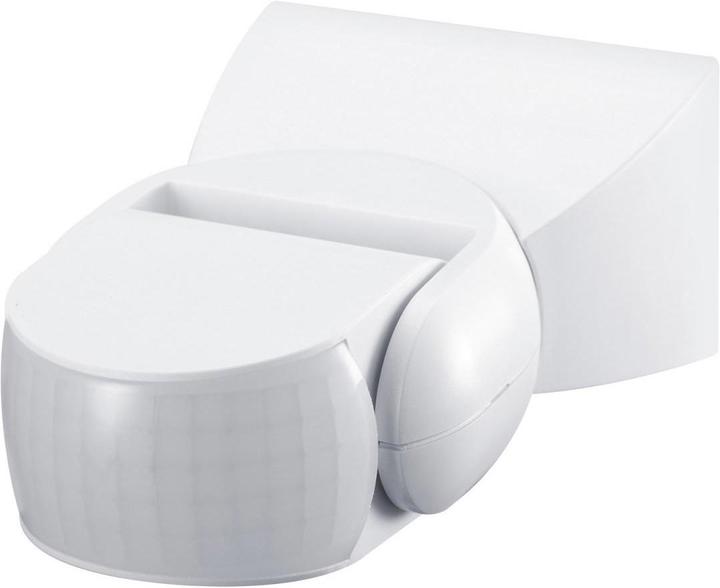

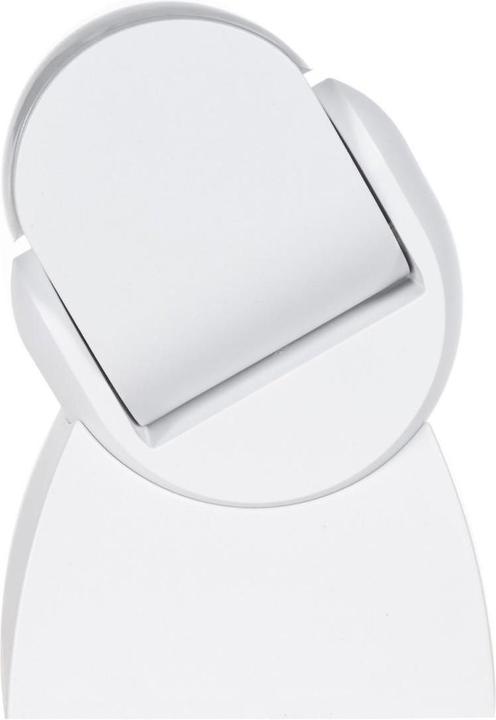

Thanks to the MCE201W, you save on electricity costs as the lighting is only activated when needed. The sensor is designed for the automatic control of lighting or other electrical devices and is compatible with LED lighting.

New Generation
This product features high sensitivity due to the use of an integrated circuit. The infrared sensor offers high stability, a modern and practical appearance, a wide operating voltage range, easy installation, and a large detection range. It automatically detects day and night light and utilizes SMT technology that complies with European standards.

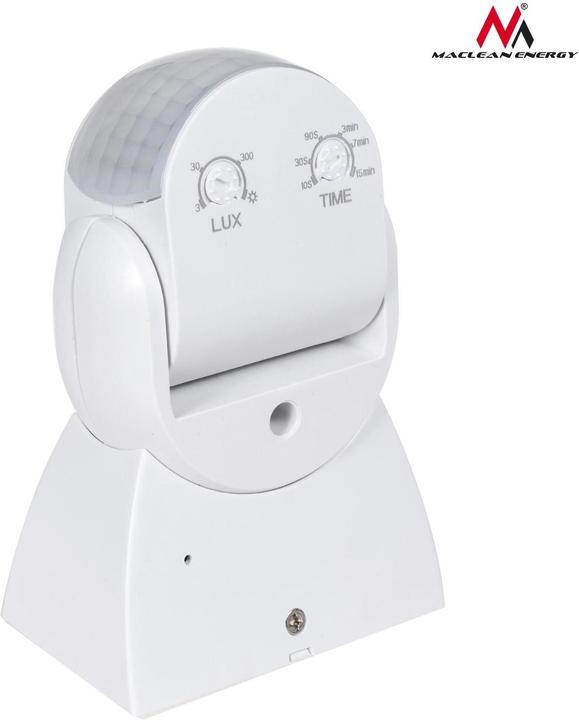

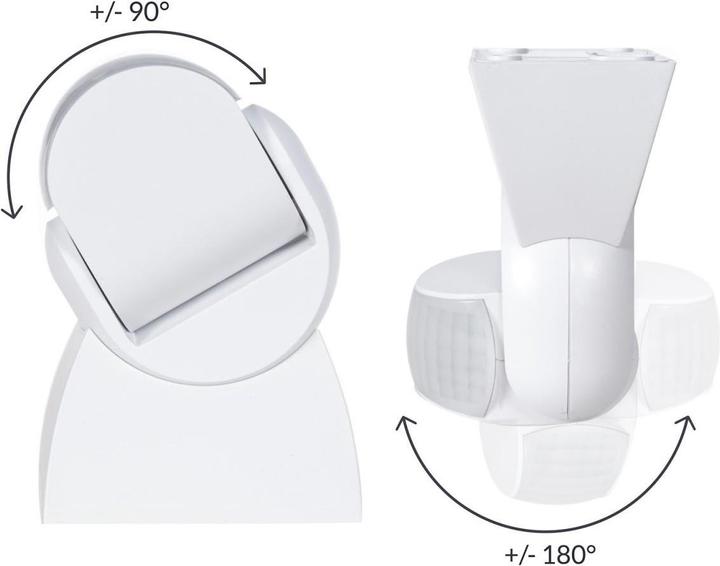

The sensor has a detection angle of 180° and various manual adjustment options. It is intended for automatic lighting control in homes, gardens, hotels, offices, stairwells, hallways, basements, restrooms, etc.

Technical Specifications

• Power Supply: 220-240 V/AC
• Detection Angle: 180°
• Network Frequency: 50/60 Hz
• Detection Range: max. 12 m (<24 °C)
• Light Intensity: <3-2000 LUX (adjustable)
• Time Delay: Min. 10 Sec. ± 3 Sec. / Max. 15 Min. ± 3 Min
• Operating Temperature: -20/+40°C
• Operating Humidity: <93 % RH
• Power Consumption: ~0.5 W
• Max. Load: 1200 W (resistive load) / 300 W (inductive load)
• Installation Height: 1.8–2.5 m
• Speed of Detected Movement: 0.6–1.5 m/s
• Sensor Dimensions (mm): 52 / 80 / 124

Delivery Contents

• Modern Infrared Motion Sensor Maclean Energy MCE201W
• Mounting Accessories (screws + plugs)
• User Manual
• Original Packaging
• Purchase Receipt.
