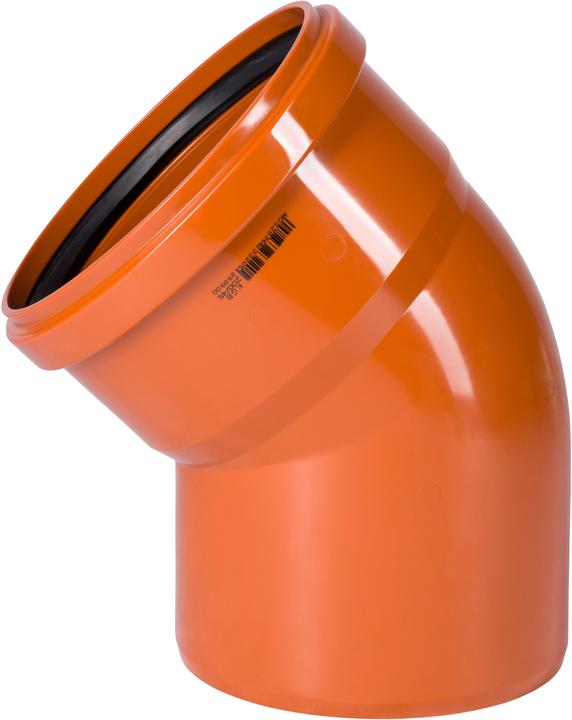

Road 45° KGB external sewers 200 mm (23120)

Characteristics:

• Complete resistance to general corrosion and wind pox
• Resistance to the harmful effects of chemicals
• Resistance of external surfaces to the effects of groundwater
• Resistance to stray currents
• Very low weight
• High wall smoothness
• Resistance to the formation of deposits on the inner surface of the pipe
• Reduction of hydraulic resistance to sewage
• Microbiological resistance
• High sustainability, rated for a period of 100 years
• Simple and quick assembly
• Possibility and ease of connection with other materials

Suitability of materials:

• Pressure modulus E (1 min.): 3,200 MPa
• Average density: 1.5 g/cm³
• Average thermal coefficient of linear expansion: 0.08 mm/mK
• Thermal conductivity: 0.16 W·K⁻¹·m⁻¹
• Surface resistance: > 10¹² Ω
• Poisson's ratio: 0.4

Application:
System "KG" pipes and fittings are intended for sewer networks, usually as non-pressurized underground pipes, which are one of the main components of the underground infrastructure. Therefore, it is essential to focus on solutions that ensure the best possible quality of investments and the lowest possible costs.

Dimensions:

• Diameter [mm]: 200
• Angle [°]: 45
• Z1 [mm]: 65
• L [mm]: 160.
