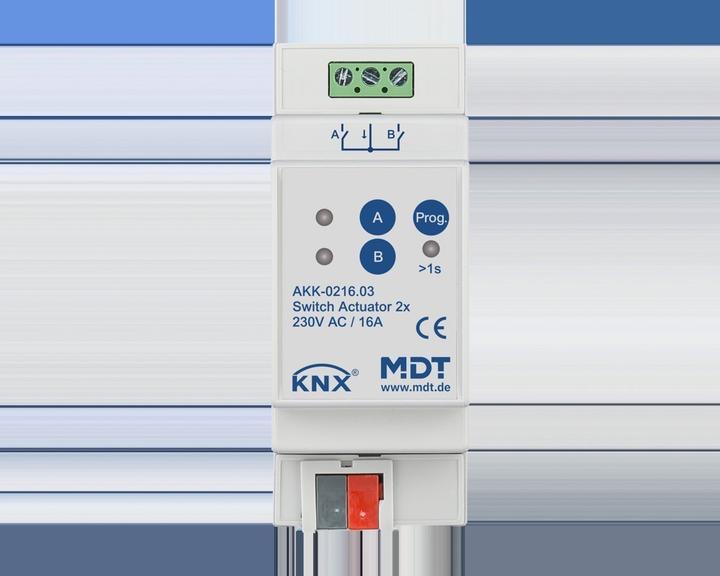

MDT technologies switch actuator 2-fold 2TE AKK-0216.03

Manufacturer: MDT technologies
Designation: Switch actuator 2-fold 2TE REG, 16A, 230VAC
Type: AKK-0216.03
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without
Radio bidirectional: No
Mounting type: REG
Width in division units: 2
On-site/manual operation: Yes
With LED display: Yes
Max. switching capacity: 2000 W
Suitable for C-load: No
Max. number of switching outputs: 2
Number of switching outputs: 2
Max. rated current: 16 A
Rated operating voltage: 230 V
Different phases connectable: No
With bus coupling: Yes
Bus module removable: No
Modular expansion option: No
Protection class (IP): IP20

Further details:
Compact version with bistable relay, current max. 16A with resistive load, 70 MikroF/10 EVG. Function extension includes a pushbutton for manual operation and LED indication for each channel. Supports normally open and normally closed operation, with status indication for manual operation. Features time functions (on/off delay), extensive staircase lighting and pulse functions, feedback function (also for manual operation) for all channels, logical links, extended scene functions per channel, central functions, and blocking objects for forced operation. Adjustable behavior on bus voltage failure/restoration. Common L-connection. Supply voltage via KNX bus. Fast application download (long frame support for ETS5).
EAN: 4251916130237.
