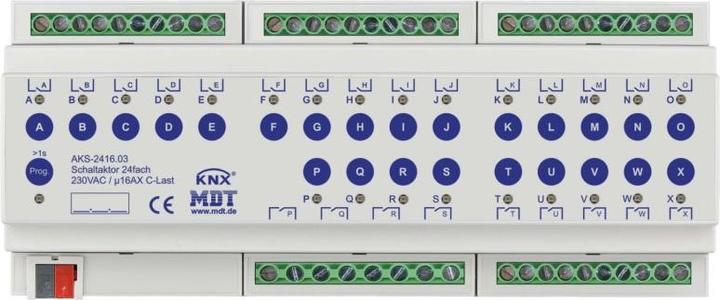

MDT technologies switch actuator 24-fold 12TE AKS-2416.03

Manufacturer: MDT technologies
Designation: Switch actuator 24-fold 12TE REG, 16A, 230VAC
Type: AKS-2416.03
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without
Radio bidirectional: No
Mounting type: REG
Width in division units: 12
On-site/manual operation: Yes
With LED display: Yes
Max. switching capacity: 2500 W
Suitable for C-load: Yes
Max. number of switching outputs: 24
Max. switching current: 16 A
Rated current: 16 A
Rated operating voltage: 230 V
Different phases connectable: Yes
With bus coupling: Yes
Bus module removable: No
Modular expansion option: No
Protection class (IP): IP20

Further details:
Switch actuator 24-fold, 12TE, REG, 16A, 230VAC, C-load, standard, 140 MicroF. Standard version with bistable relay current max. 16A, capacitive load max. 140 MicroF. Space saving due to optimal form factor. Saves up to 30% space in the control cabinet. Extensive function expansion. Manual operation lockable and LED indication per channel. Normally open and normally closed operation. Status message for manual operation. Time functions (on/off delay, staircase lighting function). Extended logic and scene functions per channel. Extended status functions (inverted, cyclic, at lock). Threshold switch (byte/2byte/2byte float). Operating hours counter for switching. Priority/forced operation with automatic fallback time. All L-connections separated. Supply voltage via KNX bus. Fast application download (long frame support for ETS5).
EAN: 4251916130381.
